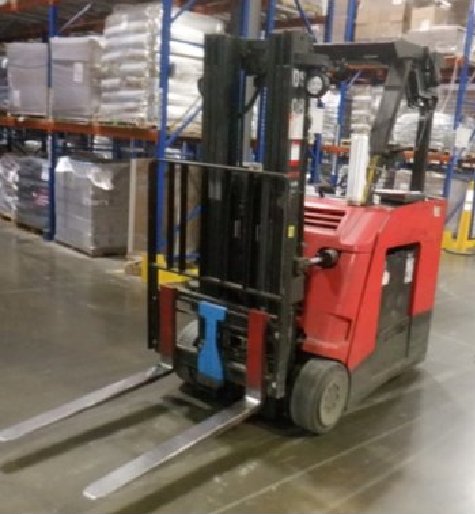

Raymond 425C40TT Specs
Quick-reference specifications for the Raymond 425C40TT forklift, compiled from published specifications.
Performance 5 specs
| Load Capacity | 4,000 lb (1,814 kg) |
|---|---|
| Drive Speed (Loaded) | 6.5 mph |
| Lift Speed (Laden) | 55 ft/min |
| Lowering Speed (Laden) | 100 ft/min |
| Turning Radius | 60 in (1.5 m) |
Dimensions 8 specs
| Overall Width | 42-48 in |
|---|---|
| Overhead Guard Height | 86-90 in |
| Mast Height Lowered (standard config) | 83-88 in |
| Mast Height Raised (standard config) | 188 in (4,775 mm) |
| Free Lift Height | 35 in |
| Wheelbase | 55 in |
| Ground Clearance | 3.5 in |
| Fork Length | 42-48 in |
Weight 1 spec
| Truck Weight with Battery | 9,930 lb |
|---|
Power / Engine 1 spec
| Battery Voltage | 36 V |
|---|
