Forklift · Raymond

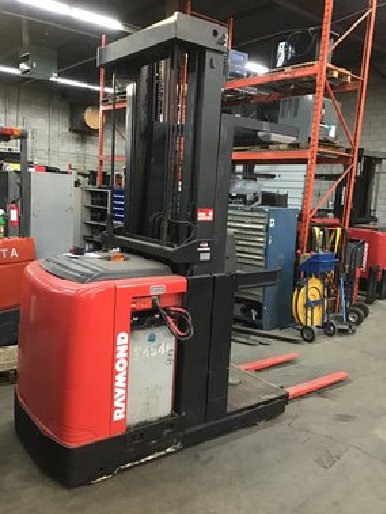

Raymond 550OPC30TT Specs
Quick-reference specifications for the Raymond 550OPC30TT forklift, compiled from published specifications.
- Maximum Lift Height
- 300 in7.6 m
Performance 10 specs
| Load Capacity | 3,000 lb (1,361 kg) |
|---|---|
| Maximum Lift Height | 300 in (7.6 m) |
| Mast Lowered Height | 127 in (3.2 m) |
| Travel Speed (unladen) | 6.5 mph |
| Travel Speed (laden) | 5.5 mph |
| Lift Speed (unladen) | 60 ft/min |
| Lift Speed (laden) | 45 ft/min |
| Lowering Speed (unladen) | 50 ft/min |
| Lowering Speed (laden) | 40 ft/min |
| Turning Radius | 72 in (1.8 m) |
Dimensions 7 specs
| Overall Length | 10.5 ft |
|---|---|
| Overall Width | 3.8 ft (35 in) |
| Wheelbase | 86 in |
| Ground Clearance | 3 in |
| Fork Length | 42 in |
| Fork Width | 4 in |
| Fork Thickness | 1.5 in |
Power / Engine 1 spec
| Battery Voltage | 24 V |
|---|
