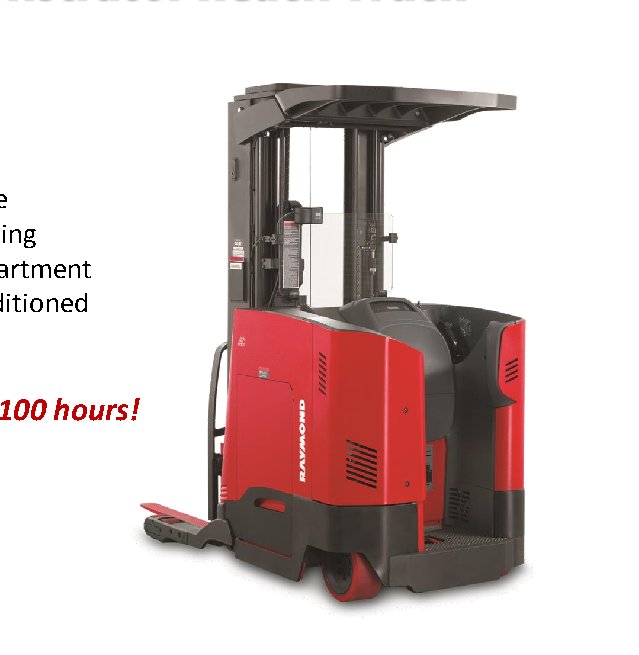

Raymond 730R45TT Specs

Quick-reference specifications for the Raymond 730R45TT forklift, compiled from published specifications.

Maximum Lift Height: 16 ft 8 in5.08 m
Operating Weight: 7,000 lb3,175 kg

Performance 4 specs

Load Capacity	4,500 lb (2,041 kg)
Travel Speed (Loaded)	7 mph
Lift Speed (Loaded)	40 fpm
Maximum Lift Height	16 ft 8 in (5.08 m)

Dimensions 7 specs

Length	8 ft 0 in (2.44 m)
Width	4 ft 3 in (1.30 m)
Height (with overhead guard)	90 in (2.29 m)
Height (mast lowered)	95 in (2.41 m)
Height (mast raised)	211 in (5.36 m)
Wheelbase	60 in (1.52 m)
Fork Length	42 in (1.07 m)

Weight 1 spec

Operating Weight	7,000 lb (3,175 kg)

Power / Engine 2 specs

Voltage	36 V
Drive	2WD
