Forklift · Raymond

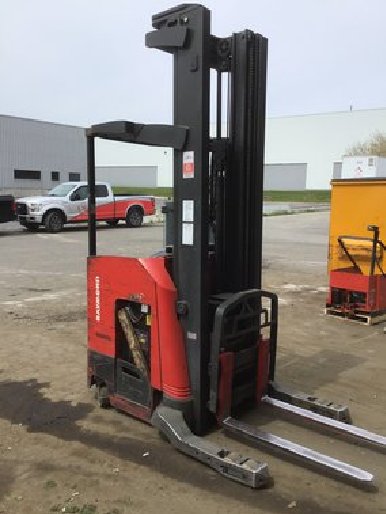

Raymond 740R45TT Specs
Quick-reference specifications for the Raymond 740R45TT forklift, compiled from published specifications.
- Gradeability (Loaded/Unloaded)
- up to 10%
Performance 4 specs
| Load Capacity | 4,500 lb (2,041 kg) |
|---|---|
| Travel Speed (Loaded) | 5.5 mph |
| Travel Speed (Unloaded) | 7 mph |
| Gradeability (Loaded/Unloaded) | up to 10% |
Dimensions 7 specs
| Mast Height – Lowered | 110 in (279 cm) |
|---|---|
| Mast Height – Raised | 250 in (635 cm) |
| Overall Width | 42 in (107 cm) |
| Height to Top of Overhead Guard | 88 in (224 cm) |
| Carriage Width (Including Side Rails) | 44 in (112 cm) |
| Carriage Length (Back to Front of Wheels) | 81 in (206 cm) |
| Ground Clearance | 3 in (8 cm) |
Weight 3 specs
| Unladen Weight without Battery | 5,993 lb (2,719 kg) |
|---|---|
| Battery Weight – Minimum | 2,000 lb (907 kg) |
| Battery Weight – Maximum | 2,300 lb (1,043 kg) |
Power / Engine 1 spec
| Battery Voltage | 36 volts |
|---|
Hydraulics / Fluids 4 specs
| Hydraulic System Pressure | up to 2,500 psi |
|---|---|
| Battery Compartment Length | 35.375 in (90 cm) |
| Battery Compartment Width | 17 in (43 cm) |
| Battery Compartment Height | 31 in (79 cm) |
