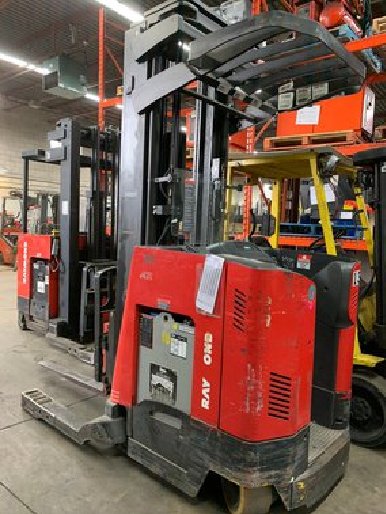

Raymond 750DR32TT Specs
Quick-reference specifications for the Raymond 750DR32TT forklift, compiled from published specifications.
Performance 2 specs
| Load Capacity | 3,200 lb (1,452 kg) |
|---|---|
| Turning Radius | 62 in (157 cm) |
Dimensions 10 specs
| Overall Length | 103 in (2.6 m) |
|---|---|
| Overall Width | 42 in (1.07 m) |
| Mast Height (lowered) | 122 in (3.1 m) |
| Mast Height (raised) | 288 in (7.3 m) |
| Length to Fork Face | 103 in (2.6 m) |
| Wheelbase | 58 in (1.47 m) |
| Ground Clearance | 3.5 in (0.09 m) |
| Fork Length | 42 in (1.07 m) |
| Fork Width | 4 in (0.10 m) |
| Fork Thickness | 2 in (0.05 m) |
Weight 1 spec
| Truck Weight | 8,200 lb (3,720 kg) |
|---|
Power / Engine 2 specs
| Power Type | 36 V AC Electric |
|---|---|
| Battery Voltage | 36 volts |
