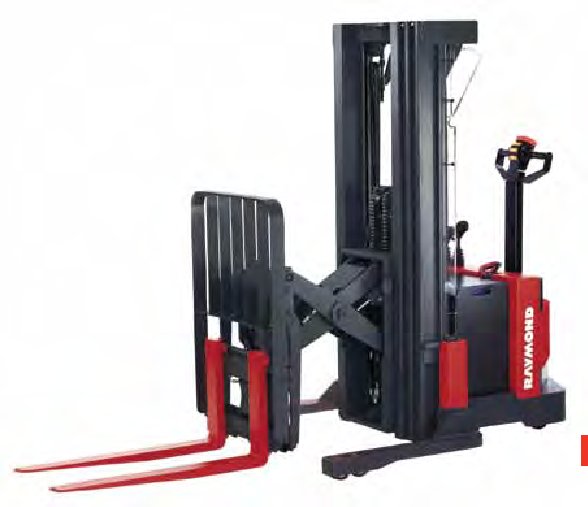

Raymond RRS30 Specs

Quick-reference specifications for the Raymond RRS30 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Capacity: 3000 lb

Performance 7 specs

Capacity	3000 lb
Tilt (Backward/Forward)	4/3 deg.
Travel Speed empty/loaded	3.2/2.8 mph
Lift Speed empty/loaded	46/29 fpm
Lowering Speed empty/loaded	47/60 fpm
Turning Radius	65 in
Reach Distance — 2-stage/3-stage	24 in

Dimensions 11 specs

Tractor Width	34.1 in
Tractor Head Length — 2-stage/3-stage	47.4/50.6 in
Wheelbase	55.3 in
Underclearance: Tractor	2.1 in
Underclearance: Baselegs	2 in
Overall Length (without forks)	69.75 in
Tractor Height at Handle	25.25 in
Handle Height Retracted	55.6 in
Forks	1.75 x 4 in
Fork Adjustment	12-30 in
Drive Tire	10.5 x 5 polyurethane in

Power / Engine 9 specs

Truck Weight, less battery	3500 lb
Minimum Battery Weight	950 lb
Battery Floor Height with optional rollers	9.5 in
Battery Compartment Width	13.3 in
Battery Compartment Length	32.3 in
Tractor Height at Battery	32.25 in
Battery Connector	SB-175 red
Battery Lead Position/Length	B/20 in
Battery Voltage	24 V
