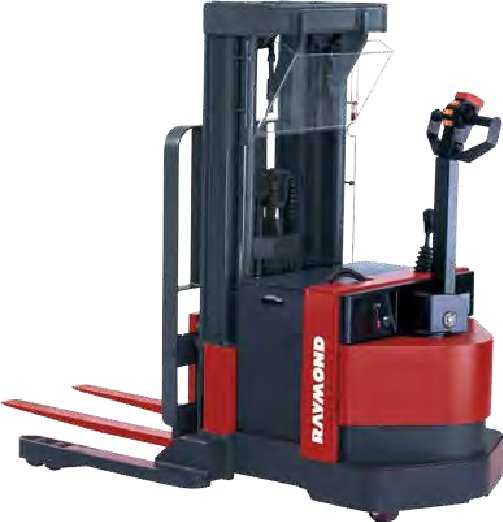

Raymond RSS40 Specs

Quick-reference specifications for the Raymond RSS40 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Capacity: 4000 lb

Performance 5 specs

Capacity	4000 lb
Travel Speed empty/loaded	3.2/2.6 mph
Lift Speed empty/loaded	49/27 fpm
Lowering Speed empty/loaded	42/60 fpm
Turning Radius	65.1 in

Dimensions 10 specs

Tractor Width	34.1 in
Tractor Head Length – 2-stage/3-stage	44.7/47.9 in
Wheelbase	55.4 in
Underclearance: Tractor	2.1 in
Underclearance: Baselegs	2 in
Tractor Height at Handle	25.25 in
Handle Height Retracted	55.6 in
Forks	1.75 x 4 in
Fork Adjustment	8.5-30 in
Drive Tire	10.5 x 5 polyurethane in

Power / Engine 9 specs

Truck Weight, less battery	2500 lb
Battery Connector	SB-175 red
Battery Lead Position/Length	B/20 in
Battery Voltage	24 V
Minimum Battery Weight	950 lb
Battery Floor Height w/optional rollers	9.5 in
Battery Compartment Width	13.3 in
Battery Compartment Length	32.3 in
Tractor Height at Battery	32.25 in
