Aerial Lift · Sinoboom

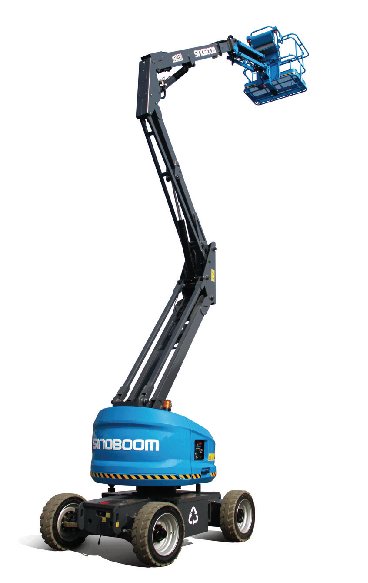

Sinoboom AB14EJ Specs
Quick-reference specifications for the Sinoboom AB14EJ aerial lift, taken from the manufacturer’s spec sheet.
- Max Platform Capacity
- 507 lb230 kg
- Max Working Height
- 52 ft 6 in16 m
- Weight
- 15,785 lb7,160 kg
- Gradeability
- 30%
Performance 15 specs
| Max Platform Capacity | 507 lb (230 kg) |
|---|---|
| Drive × Steer | 2 WD×2 WS |
| Max Working Height | 52 ft 6 in (16 m) |
| Max Horizontal Outreach | 24 ft 11 in (7.6 m) |
| Max Up and Over Clearance | 25 ft 7 in (7.8 m) |
| Max Platform Occupants | 2 Persons |
| Drive Speed (Stowed) | 3.2 mph (5.2 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Gradeability | 30% |
| Turntable Rotation | 355°/Non-continuous |
| Platform Rotation | 160° |
| Tilt Rating | 5° |
| Turntable Tail-Swing | 0 m |
| Max Allowable Wind Speed | 12.5 m/s (28 mph) |
| System Voltage | 12 VDC |
Dimensions 9 specs
| Max Platform Height | 45 ft 11 in (14 m) |
|---|---|
| Stowed Length | 19 ft 8 in (6 m) |
| Overall Width | 5 ft 8 in (1.73 m) |
| Stowed Height | 6 ft 7 in (2 m) |
| Stowed Length (Transport) | 19 ft 8 in (6 m) |
| Overall Width (Transport) | 5 ft 8 in (1.73 m) |
| Stowed Height (Transport) | 6 ft 7 in (2 m) |
| Wheelbase | 6 ft 3 in (1.9 m) |
| Ground Clearance | 8.7 in (0.22 m) |
Weight 1 spec
| Weight | 15,785 lb (7,160 kg) |
|---|
