Aerial Lift · Sinoboom

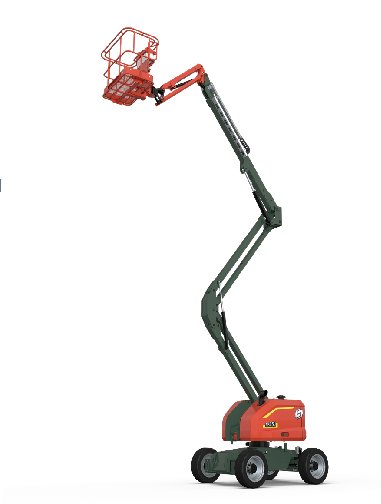

Sinoboom AB480J Specs
Quick-reference specifications for the Sinoboom AB480J aerial lift, taken from the manufacturer’s spec sheet.
- Max Platform Capacity
- 551 lb250 kg
- Max Working Height
- 54 ft 9 in16.7 m
- Weight
- 15,609 lb 2WD / 16,050 lb 4WD7,080 kg 2WD / 7,280 kg 4WD
Performance 14 specs
| Max Working Height | 54 ft 9 in (16.7 m) |
|---|---|
| Max Horizontal Reach | 27 ft 11 in (8.5 m) |
| Max Platform Capacity | 551 lb (250 kg) |
| Max Platform Occupants | 2 persons |
| Drive Speed (Stowed) | 3.1 mph 4 WD，4.4 mph 2 WD (5 km/h 4 WD，7 km/h 2 WD) |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) |
| Turntable Rotation | 355° /Non-continuous |
| Platform Rotation | 160° |
| Tilt Rating | 5° |
| Turning Radius (Inside/Outside) | 5 ft 11 in/14 ft 9 in (1.8 m/4.5 m) |
| Turntable Tail-Swing | 0 in (0 m) |
| Max Allowable Wind Speed | 28 mph (12.5 m/s) |
| Drive × Steer | 4WD×2WS |
| System Voltage | 12 VDC |
Dimensions 10 specs
| Max Platform Height | 48 ft 3 in (14.7 m) |
|---|---|
| Max Up and Over Clearance | 23 ft 7 in (7.2 m) |
| Stowed Length | 24 ft 1 in (7.35 m) |
| Stowed Width | 7 ft 5 in (2.26 m) |
| Stowed Height | 7 ft 3 in (2.22 m) |
| Stowed Length (Transport) | 24 ft 1 in (7.35 m) |
| Stowed Width (Transport) | 7 ft 5 in (2.26 m) |
| Stowed Height (Transport) | 7 ft 3 in (2.22 m) |
| Wheelbase | 6 ft 8 in (2.03 m) |
| Ground Clearance | 1 ft 1 in (0.32 m) |
Weight 1 spec
| Weight | 15,609 lb 2WD / 16,050 lb 4WD (7,080 kg 2WD / 7,280 kg 4WD) |
|---|
