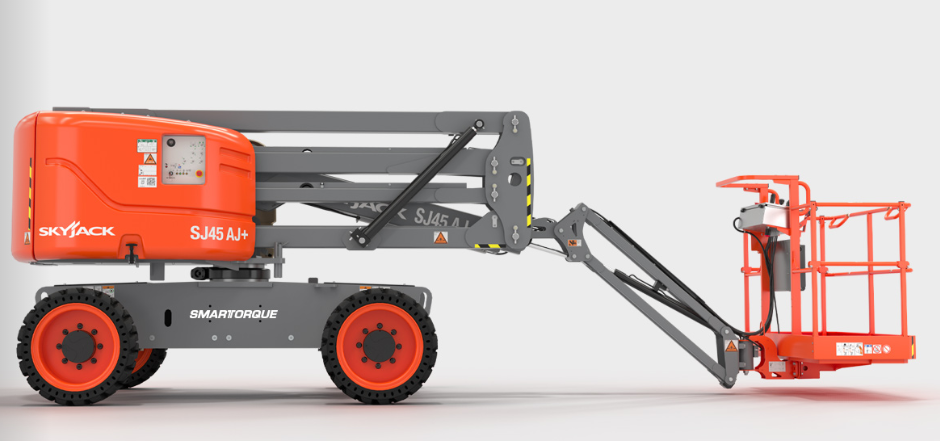

Skyjack SJ45 AJ+ Spec Sheet
Quick-reference specifications for the Skyjack SJ45 AJ+. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 45’ (13.72 m)
D Stowed Height: 6’ 9” (2.06 m)
Capacity: 660 lbs (300 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 45’ (13.72 m) |
|---|---|
| Up and Over Height | 24’ 5.25” (7.45 m) |
| C Tailswing | 2’ (0.61 m) |
| Jib Length | 4’ 8” (1.40 m) |
| Gradeability | 40% |
| Turning Radius (Inside) | 4’ 11.25” (1.50 m) |
| Turning Radius (Outside) | 14’ 3” (4.34 m) |
| Capacity | 660 lbs (300 kg) |
Dimensions
| Work Height | 51’ (15.54 m) |
|---|---|
| A Platform Size | 30” x 72” (0.76 x 1.83 m) |
| B Stowed Width | 7’ 6” (2.29 m) |
| D Stowed Height | 6’ 9” (2.06 m) |
| E Transportation Height | 7’ 1” (2.16 m) |
| F Stowed Length | 19’ 8” (6.00 m) |
| G Transportation Length | 15’ 7” (4.75 m) |
| H Wheelbase | 6’ 8” (2.03 m) |
| I Ground Clearance | 15.25” (0.39 m) |
Weights & Electrical
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
|---|---|
| skyjack@skyjack.com | |
| Horizontal Reach | 22’ 9” (6.93 m) |
| Weight | 11,190 lbs (5,075 kg) |
Powertrain & Systems
| Axle Oscillation | 5” (12.70 cm) |
|---|---|
| Drive Speed (High speed) | 2.5 mph (4.0 km/h) |
| Tire Size 10 x | 31 |
| Diesel Engine Kubota D1305 – | 24.8 HP (18.5 KW) |
Hydraulics & Capacities
| Fuel Tank Capacity | 17 gal. (64 L) |
|---|---|
| Hydraulic Reservoir | 24 gal. (91 L) |
