Boom Lift · Skyjack

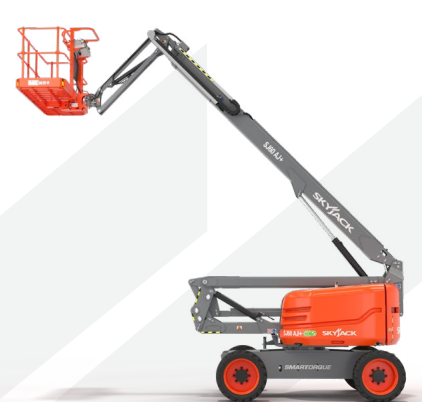

Skyjack SJ60 AJ+ Specs
Quick-reference specifications for the Skyjack SJ60 AJ+ boom lift, taken from the manufacturer’s spec sheet.
- Capacity
- 300 / 454 kg
- Platform Height
- 18.29 m
- Work Height
- 20.29 m
- Weight
- 8,557 kg
Performance 12 specs
| Work Height | 20.29 m |
|---|---|
| Horizontal Reach | 11.56 m |
| Horizontal Work Reach | 12.16 m |
| Rotation | 360° Continuous |
| Platform Rotation | 170° |
| Gradeability | 40% |
| Turning Radius (Inside) | 2.21 m |
| Turning Radius (Outside) | 5.31 m |
| Axle Oscillation | 10.16 cm |
| Drive Speed (High speed) | 4.0 km/h |
| Capacity | 300 / 454 kg |
| Maximum Wind Speed | 12.5 m/s |
Dimensions 14 specs
| Platform Height | 18.29 m |
|---|---|
| Up and Over Height | 8.31 m |
| Platform Size | 0.91 x 2.44 m |
| Stowed Width | 2.44 m |
| Tailswing | 0.61 m |
| Stowed Height | 2.54 m |
| Transportation Height | 2.79 m |
| Stowed Length | 8.59 m |
| Transportation Length | 6.60 m |
| Wheelbase | 2.44 m |
| Ground Clearance | 0.33 m |
| Jib Length | 1.52 m |
| Tyre Size | 14 x 610 |
| Tyre Type | Foam-Filled |
Weight 1 spec
| Weight | 8,557 kg |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 115 L |
|---|---|
| Hydraulic Reservoir | 115 L |
