Telehandler · Skyjack

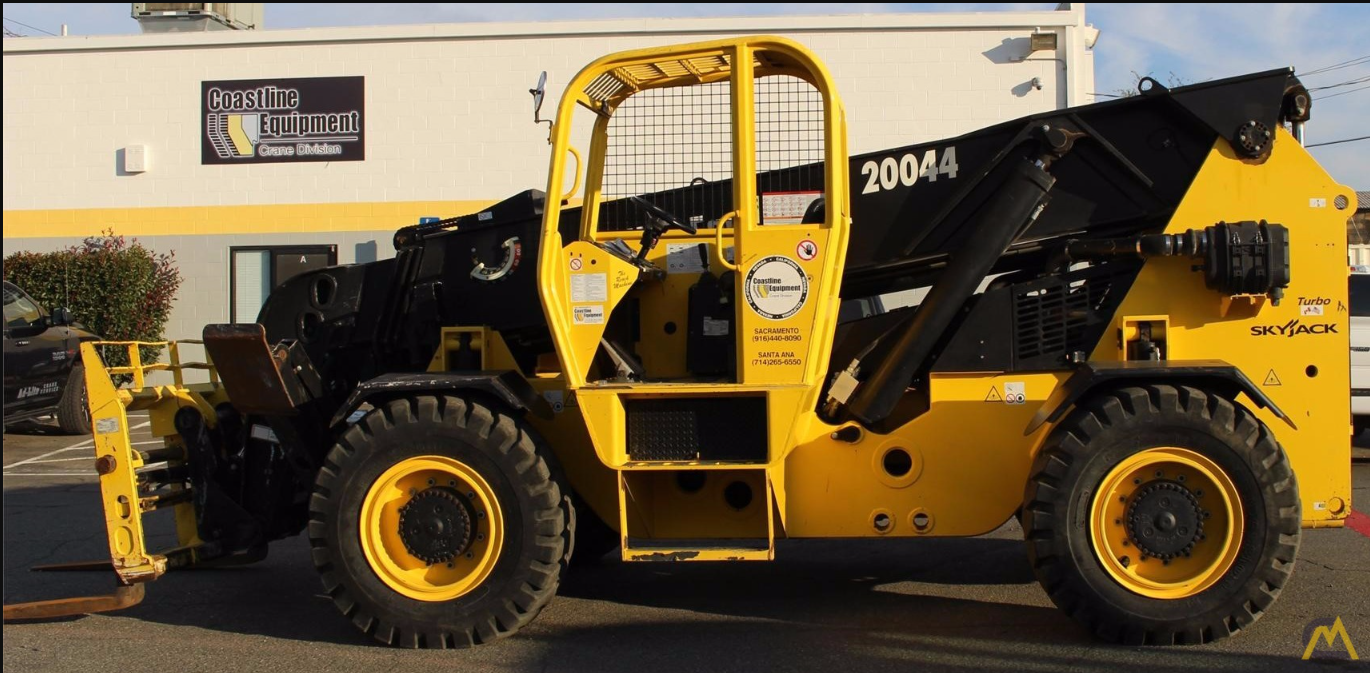

Skyjack ZB20044 Specs
Quick-reference specifications for the Skyjack ZB20044 telehandler, compiled from published specifications.
- Max Lift Capacity
- 20,000 lb9,072 kg
- Operating Weight
- 45,000 lb20,412 kg
Performance 7 specs
| Max Lift Capacity | 20,000 lb (9,072 kg) |
|---|---|
| Max Lift Height | 44 ft 10 in (13.67 m) |
| Max Forward Reach | 27 ft 5 in (8.36 m) |
| Top Speed | 20.5 mph (33 km/h) |
| Frame Leveling | ±8 degrees |
| Carriage Rollback | 19 degrees |
| Carriage Forward Tilt | 80 degrees |
Dimensions 6 specs
| Wheelbase | 11 ft 6 in (3.51 m) |
|---|---|
| Overall Length (less forks) | 20 ft 3 in (6.17 m) |
| Overall Width | 8 ft 6 in (2.59 m) |
| Overall Height (stowed) | 9 ft (2.74 m) |
| Ground Clearance | 18 in (46 cm) |
| Turning Radius (outside) | 18 ft 4 in (5.59 m) |
Weight 1 spec
| Operating Weight | 45,000 lb (20,412 kg) |
|---|
Power / Engine 3 specs
| Engine | Cummins QSB 4.5C Turbocharged Diesel |
|---|---|
| Horsepower | 160 hp @ 2500 rpm |
| Service Brakes | 4 wheel dry disc |
Hydraulics / Fluids 3 specs
| Fuel/Hydraulic Tank | 55 US gal (208 L) |
|---|---|
| Hydraulic Tank | 49 US gal (185 L) |
| Tires | 17.5 x 25 16PR grip lug |
