Equipment Spec Sheet

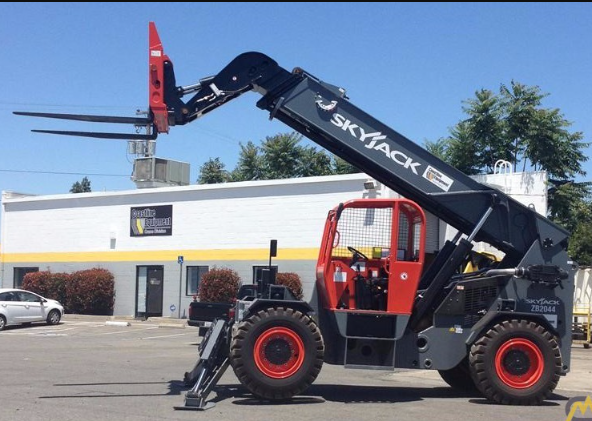

Skyjack ZB2044 Spec Sheet
Quick-reference specifications for the Skyjack ZB2044. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
N RATED CAPACITY AT: 24″ LOAD CENTER
Maximum Lift Height: 44’ 10” (13.67 m)
Maximum Forward Reach: 27’ 5” (8.36 m)
Overall Width: 8’ 6” (2.59 m)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| www.skyjack.com 20,000 lbs (9,072 kg) capacity, | 44’ 10” (13.67 m) maximum lift height |
|---|---|
| Maximum Lift Capacity | 20,000 lbs (9,072 kg) |
| Maximum Lift Height | 44’ 10” (13.67 m) |
| Maximum Forward Reach | 27’ 5” (8.36 m) |
| Turning Radius – Outside | 18’ 4” (5.59 m) |
| Max Travel Speed – Forward | 20.5 mph (33 kmh) |
| FORWARD REACH | 28 |
| N RATED CAPACITY AT | 24″ LOAD CENTER |
Dimensions
| O/A Length – Less Forks | 20’ 3” (6.17 m) |
|---|---|
| Overall Height – Stowed | 9’ (2.74 m) |
| Overall Width | 8’ 6” (2.59 m) |
| Ground Clearance | 18” (46 cm) |
Weights & Electrical
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
|---|---|
| skyjack@skyjack.com | |
| Operating Weight | 45,000 lbs (20,412 kg) |
| FACE OF TIRE | 70° |
| WHEN BOOM FULLY RETRACTED | 12,000 lb (5,443 kg) |
| FACE OF TIRE | 10° |
Powertrain & Systems
| cooled diesel, | 168hp @ 2300rpm ■ Powershift, 3 speed transmission |
|---|---|
| Engine 168hp Cummins QSB | 4.5C T4F |
| Transmission Dana powershift, | 3 speed F/R |
| Axles Axletech steerable outboard planetary Service Brakes | 4 wheel disc |
| Tires 17.5 x 25 | 16PR grip lug |
Hydraulics & Capacities
| Fuel Tank Capacity | 48 gallon (185 L) |
|---|---|
| Hydraulic Reservoir | 55 gallon (208 L) |
