5K Telehandler · Skytrak

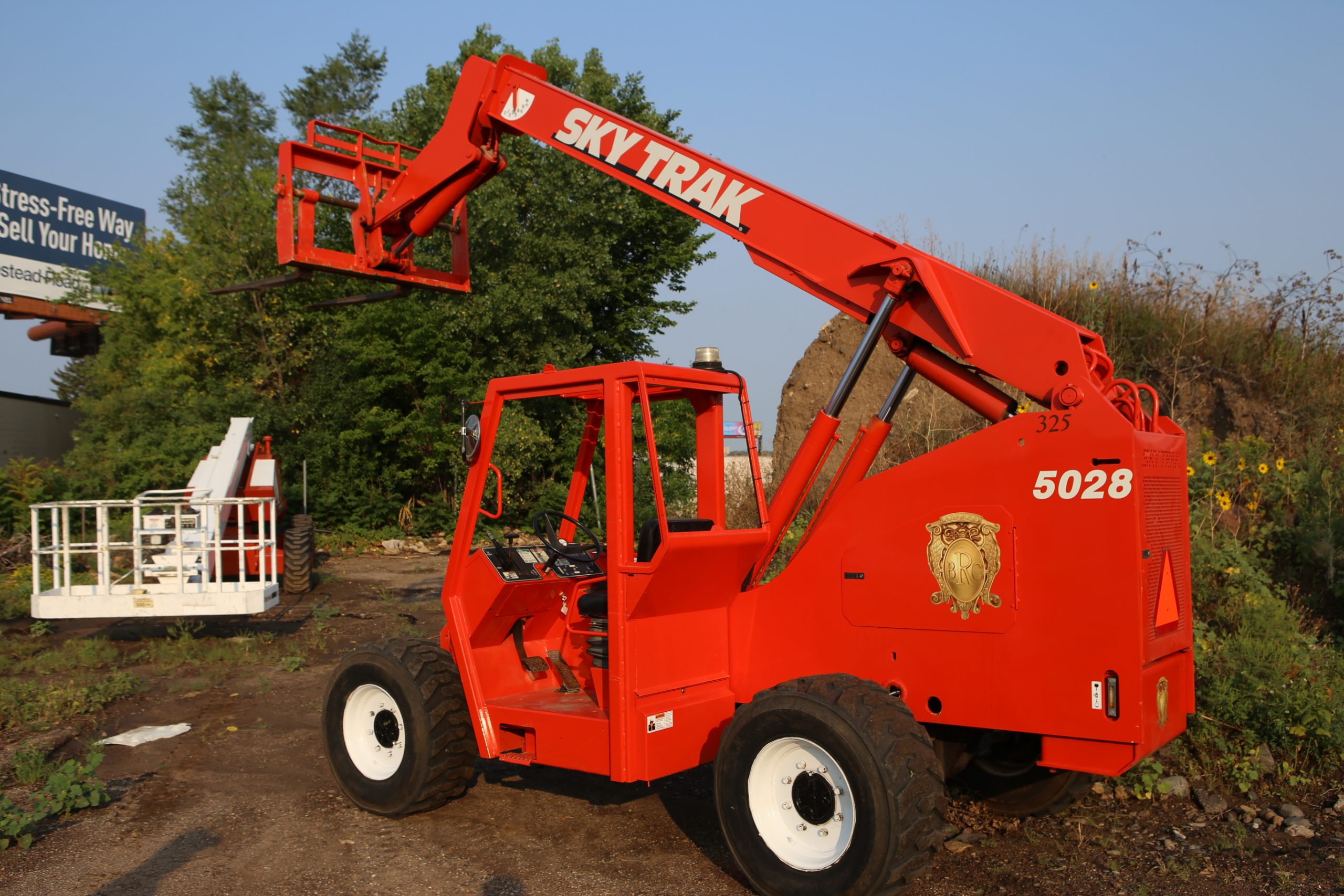

Skytrak 5028 Specs

Quick-reference specifications for the Skytrak 5028 telehandler, compiled from published specifications.

Lift Capacity: 5,000 lb2,268 kg
Operating Weight: 14,500 lb6,577 kg

Performance 4 specs

Lift Capacity	5,000 lb (2,268 kg)
Max Lift Height	27 ft 8 in (8.43 m)
Turning Radius	13 ft 10 in (4.24 m)
Ground Clearance	1.13 ft (13.6 in)

Dimensions 3 specs

Overall Length	18 ft 0 in
Overall Width	7 ft 8 in
Overall Height	7 ft 8 in

Weight 1 spec

Operating Weight	14,500 lb (6,577 kg)

Power / Engine 2 specs

Engine Model	4BTA3.9
Horsepower	80 hp
