Telehandler · Skytrak

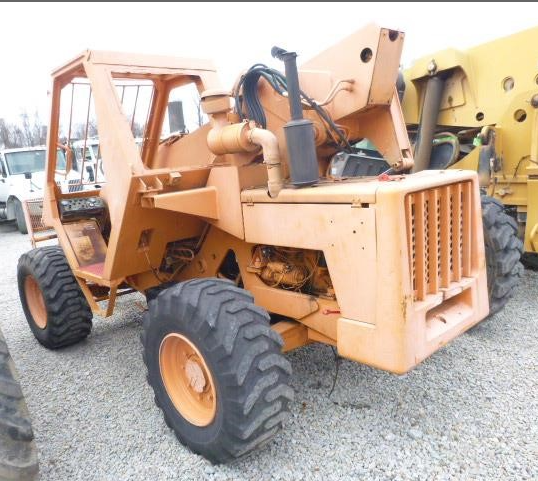

Skytrak 5522 Specs
Quick-reference specifications for the Skytrak 5522 telehandler, compiled from published specifications.
- Max Lift Capacity
- 5,500 lb2,495 kg
- Operating Weight
- 13,200 lb5,987 kg
Performance 5 specs
| Max Lift Capacity | 5,500 lb (2,495 kg) |
|---|---|
| Lift Height | 21 ft 3 in (6.48 m) |
| Max Reach @ Max Height (24″ Load Center) | 12 ft 1 in (3.68 m) |
| Max Reach Below Grade | 2 ft 6 in (0.76 m) |
| Turning Clearance | 11 ft (3.35 m) |
Dimensions 5 specs
| Length (less forks) | 173 in (4.39 m) |
|---|---|
| Width | 86 in (2.18 m) |
| Height | 94 in (2.39 m) |
| Wheelbase | 98 in (2.49 m) |
| Ground Clearance | 14 in (356 mm) |
Weight 1 spec
| Operating Weight | 13,200 lb (5,987 kg) |
|---|
Power / Engine 4 specs
| Engine Type | Perkins 4.236 Diesel |
|---|---|
| Engine Power | 76 HP (56.7 kW) @ 2,200 RPM |
| Transmission | Hydrostatic, 2-speed with inching control |
| Drive Type | 4-wheel drive, Planetary drive |
Hydraulics / Fluids 1 spec
| Auxiliary Hydraulics | 18 GPM (68.1 L/min) |
|---|
