6K Telehandler · Skytrak

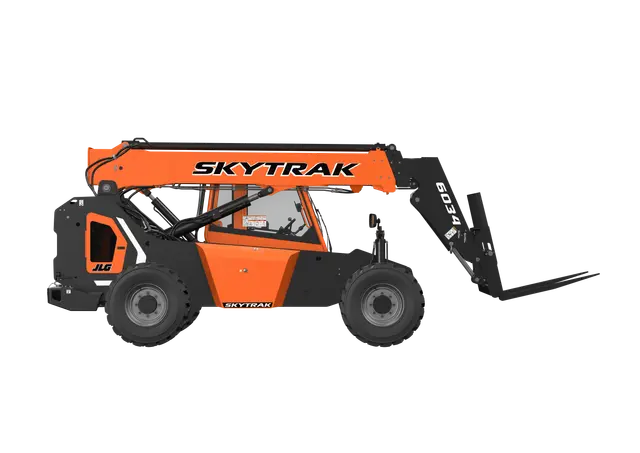

Skytrak 6034 Specs
Quick-reference specifications for the Skytrak 6034 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 6,000 lb2,722 kg
- Maximum Lift Height
- 34 ft 5 in10.5 m
- Maximum Forward Reach
- 23 ft 2 in7.1 m
- Operating Weight
- 14,500 lb6,577 kg
Performance 10 specs
| Rated Capacity | 6,000 lb (2,722 kg) |
|---|---|
| Maximum Forward Reach | 23 ft 2 in (7.1 m) |
| Load at Max Reach | 1,000 lb (454 kg) |
| Frame Leveling | 10 Degrees |
| Lift Speed (Boom Retracted) Down | 9 sec |
| Boom Speed Extended | 10 sec |
| Boom Speed Retracted | 10 sec |
| Top Travel Speed (4-Speed) | 15 mph (24.1 km/h) |
| Drawbar Pull (Loaded) | 12,863 lb (57 kN) |
| Outside Turning Radius | 11 ft 11 in (3.6 m) |
Dimensions 7 specs
| Maximum Lift Height | 34 ft 5 in (10.5 m) |
|---|---|
| Load at Max Height | 4,000 lb (1,814 kg) |
| Machine Height | 97.75 in (2483 mm) |
| Ground Clearance | 15.4 in (390 mm) |
| Machine Length | 209.6 in (5325 mm) |
| Machine Width | 95 in (2414 mm) |
| Wheelbase | 110 in (2794 mm) |
Weight 1 spec
| Operating Weight | 14,500 lb (6,577 kg) |
|---|
Power / Engine 5 specs
| Make and Model | Deutz TCD2.9 L4 |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 177 cu in (2.9 L) |
| Gross Power Basic | 74 hp (55 kW @ 2,400 rpm) |
| Maximum Torque @ 1600 rpm | 221 lb-ft (300 Nm) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 28 gal (106 L) |
|---|---|
| Hydraulic System-Implement – Capacity | 35.7 gal (135 L) |
