6K Telehandler · Skytrak

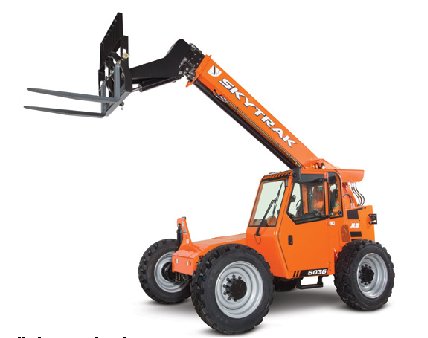

Skytrak 6036 Legacy Specs
Quick-reference specifications for the Skytrak 6036 Legacy telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 6,000 lb2,722 kg
- Maximum Lift Height
- 36 ft 1 in11.0 m
- Maximum Forward Reach
- 22 ft 4 in6.8 m
- Operating Weight
- 21,300 lb9,662 kg
Performance 10 specs
| Rated Capacity | 6,000 lb (2,722 kg) |
|---|---|
| Maximum Forward Reach | 22 ft 4 in (6.8 m) |
| Load at Max Reach | 1,800 lb (816 kg) |
| Frame Leveling | 10° |
| Lift Speed (boom retracted) – Down | 9 sec |
| Boom Speed – Extended | 13.5 sec |
| Boom Speed – Retracted | 14 sec |
| Top Travel Speed (4-Speed) | 19 mph (31 kph) |
| Drawbar Pull (loaded) | 22,000 lb (98 kN) |
| Outside Turning Radius | 165 in (4.19 m) |
Dimensions 2 specs
| Maximum Lift Height | 36 ft 1 in (11.0 m) |
|---|---|
| Load at Max Height | 6,000 lb (2,722 kg) |
Weight 1 spec
| Operating Weight | 21,300 lb (9,662 kg) |
|---|
Power / Engine 5 specs
| Make and Model | Cummins QSF3.8L Tier 4 F |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 229 cu in (3.8 L) |
| Gross Power Basic | 74 hp (55 kW) |
| Maximum Torque @ 1400 rpm | 340 lb-ft (461 Nm) |
Hydraulics / Fluids 2 specs
| Hydraulic System-Implement – Capacity | 45.5 gal (172.2 L) |
|---|---|
| Fuel Tank Capacity | 35 gal (132.5 L) |
