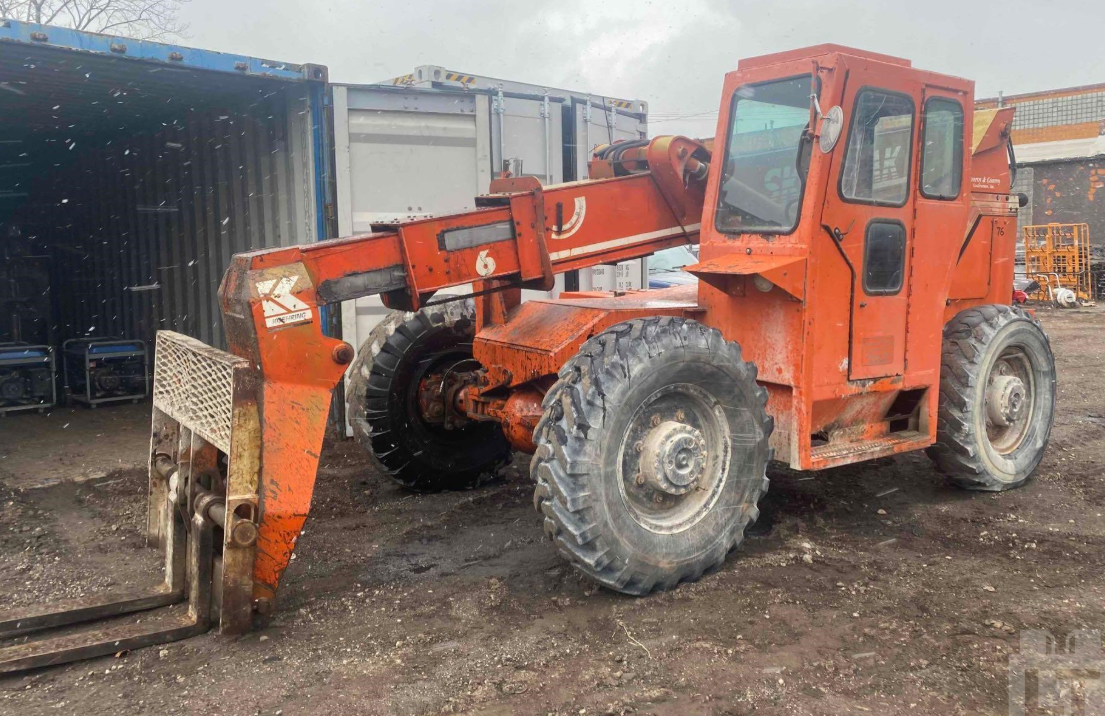

8K Telehandler · Skytrak
Skytrak 8038 Specs
Quick-reference specifications for the Skytrak 8038 telehandler, compiled from published specifications.
- Max Lift Capacity
- 8,000 lb3,629 kg
- Operating Weight
- 23,100 lb10,477 kg
Performance 6 specs
| Max Lift Capacity | 8,000 lb (3,629 kg) |
|---|---|
| Lift Height | 37 ft 6 in (11.43 m) |
| Max Reach Below Grade | 4 ft (1.22 m) |
| Forward Reach Capacity | 2,000 lb (907 kg) at 23 ft 6 in (7.16 m) |
| Turning Radius | 13 ft 3 in (4.04 m) |
| Steering Modes | 2-wheel, 4-wheel, and crab |
Dimensions 6 specs
| Length Less Forks | 206 in (5.23 m) |
|---|---|
| Width | 96 in (2.44 m) |
| Height | 102 in (2.59 m) |
| Wheelbase | 108 in (2.74 m) |
| Ground Clearance | 16 in (406 mm) |
| Frame Tilt | 120° each way |
Weight 1 spec
| Operating Weight | 23,100 lb (10,477 kg) |
|---|
Power / Engine 4 specs
| Engine Option 1 | Ford BSD-444 diesel, 86 hp @ 2500 rpm |
|---|---|
| Engine Option 2 | Ford BSD-444T turbocharged diesel, 107 hp @ 2500 rpm |
| Engine Option 3 | Perkins 4.236T turbocharged diesel, 102 hp @ 2600 rpm |
| Engine Option 4 | John Deere 4239T turbocharged diesel, 102 hp @ 2500 rpm |
Hydraulics / Fluids 1 spec
| Boom Type | Telescopic 3-stage |
|---|
