Telehandler Spec Sheet

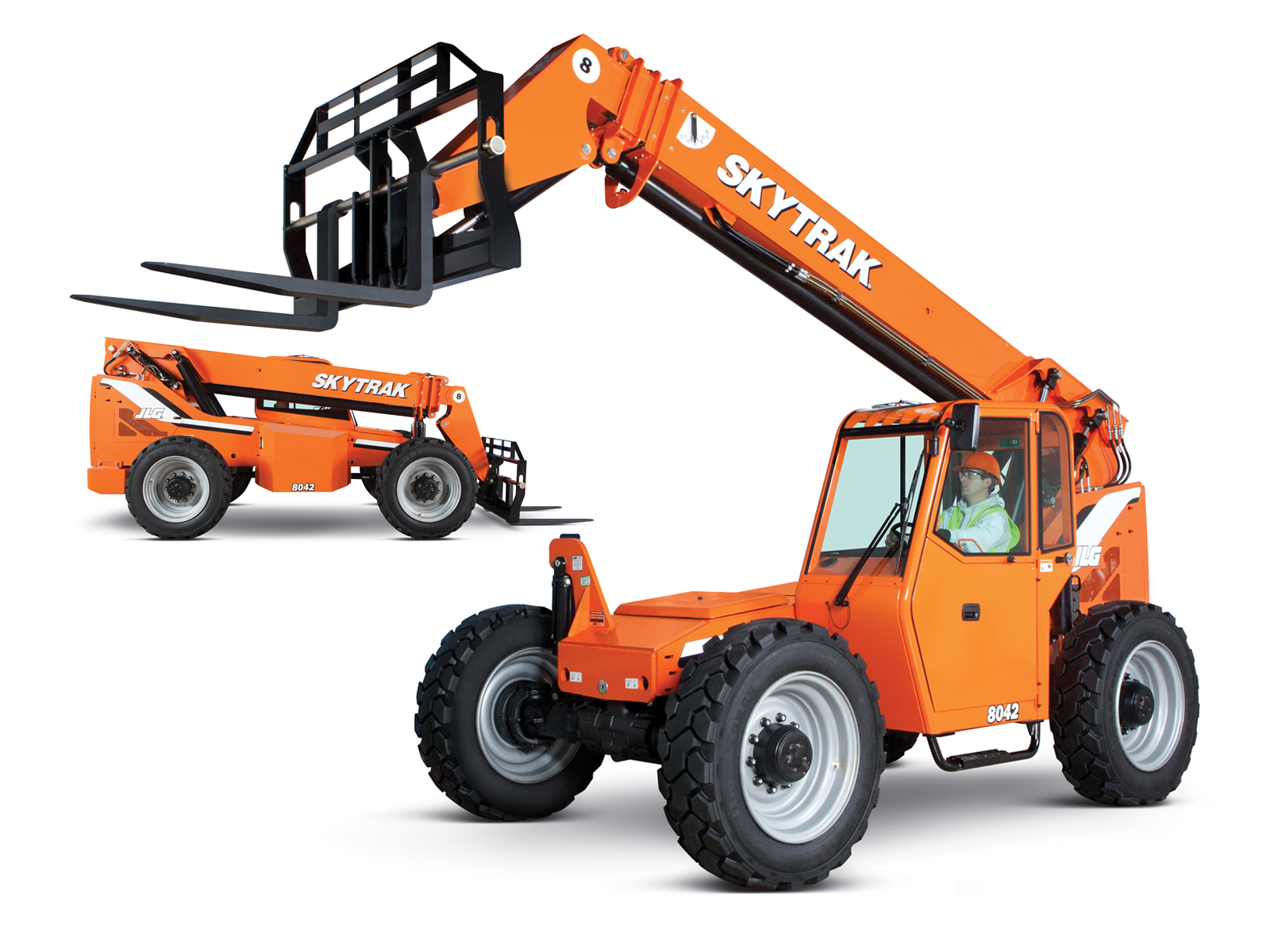

SkyTrak 8042 Spec Sheet
Quick-reference specifications for the SkyTrak 8042. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 8,000 lb
Maximum Lift Height 41 ft: 11 in.
Maximum Forward Reach 26 ft: 7 in.
Operating Weight: 27,100 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 8,000 lb |
|---|---|
| Maximum Lift Height 41 ft | 11 in. |
| Maximum Forward Reach 26 ft | 7 in. |
| Frame Leveling | 10° |
| Top Travel Speed (4-Speed) | 19 mph |
| Drawbar Pull (loaded) | 25,000 lb |
| Outside Turning Radius | 13 ft |
| Fork Mounted Work Platform 8 ft, | 1,000 lb Capacity |
| Material Handling Arm | 4,000 lb Capacity |
Dimensions
| Load at Max Height | 6,000 lb |
|---|
Weights & Electrical
| Load at Max Reach | 2,200 lb |
|---|---|
| Retracted | 14.2 sec |
| Operating Weight | 27,100 lb |
| Displacement | 229 cu in. |
Powertrain & Systems
| Gross Power Basic | 110 hp |
|---|---|
| Powershift. 4-speed forward and | 3-speed reverse. |
| Axles Full-time planetary | 4-wheel drive. |
| Rear view mirrors. Steering | 4-Wheel |
| Power steering. Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front. |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 35 gal |
|---|---|
| Capacity | 45.5 gal |
