10K Telehandler · Skytrak/JLG

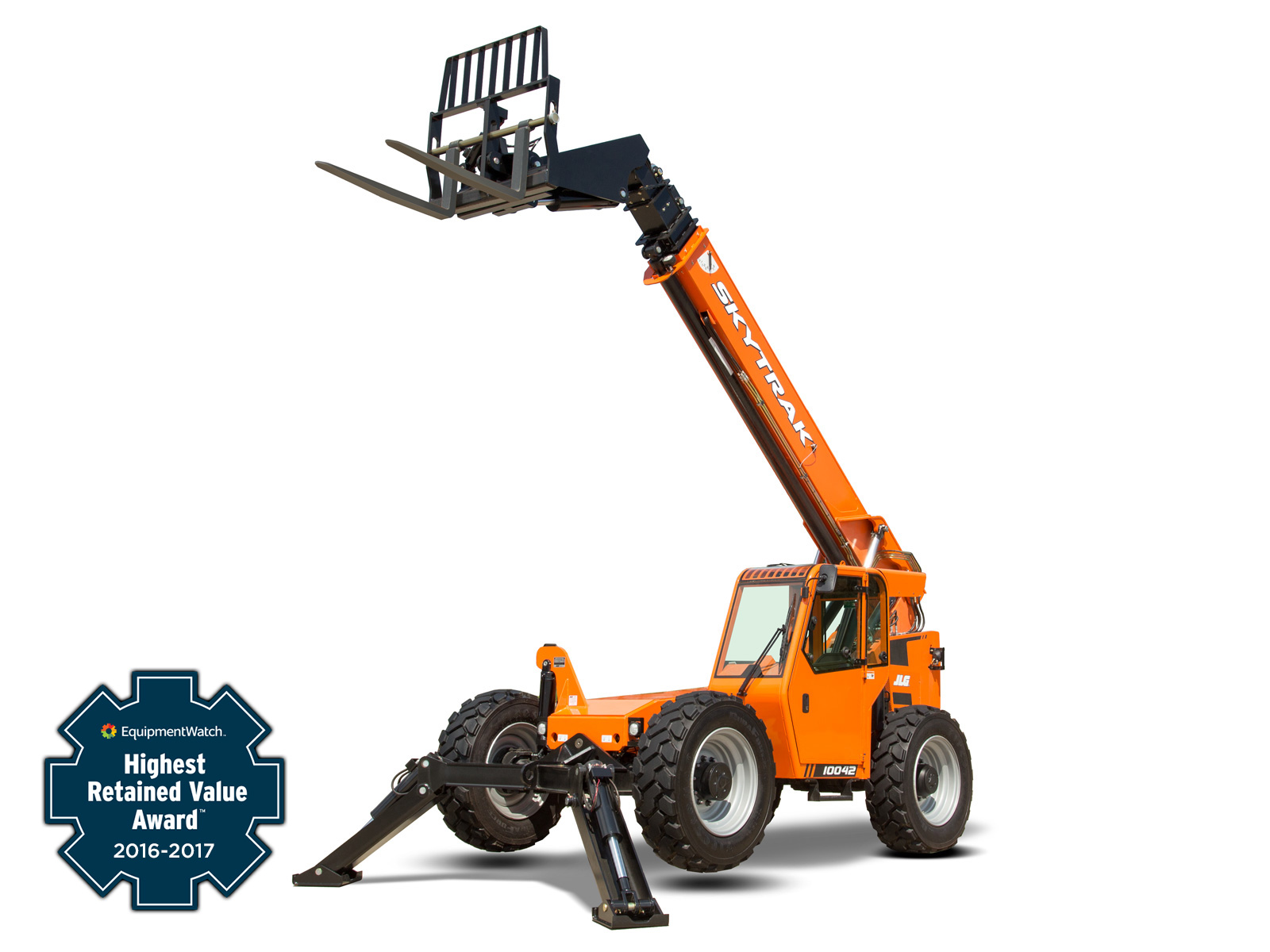

Skytrak/JLG 10042 Specs
Quick-reference specifications for the Skytrak/JLG 10042 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 10,000 lb4,536 kg
- Maximum Lift Height
- 42 ft 1 in12.8 m
- Maximum Forward Reach
- 26 ft 7 in8.10 m
- Operating Weight
- 27,300 lb12,383 kg
Performance 10 specs
| Rated Capacity | 10,000 lb (4,536 kg) |
|---|---|
| Maximum Forward Reach | 26 ft 7 in (8.10 m) |
| Load at Max Reach | 6,000 lb (2,722 kg) |
| Frame Leveling | 10° |
| Lift Speed (boom retracted) – Down | 15 sec |
| Boom Speed – Extended | 17.2 sec |
| Boom Speed – Retracted | 15.1 sec |
| Top Travel Speed (4-Speed) | 20 mph (32 kph) |
| Drawbar Pull (loaded) | 24,500 lb (109 kN) |
| Outside Turning Radius | 170 in (4.32 m) |
Dimensions 2 specs
| Maximum Lift Height | 42 ft 1 in (12.8 m) |
|---|---|
| Load at Max Height | 6,000 lb (2,722 kg) |
Weight 1 spec
| Operating Weight | 27,300 lb (12,383 kg) |
|---|
Power / Engine 2 specs
| Make and Model | Cummins QSB3.8L Tier 4 F |
|---|---|
| No. of Cylinders | 4 |
Hydraulics / Fluids 1 spec
| Hydraulic System-Implement – Capacity | 52 gal (196.8 L) |
|---|
