10K Telehandler · Skytrak/JLG

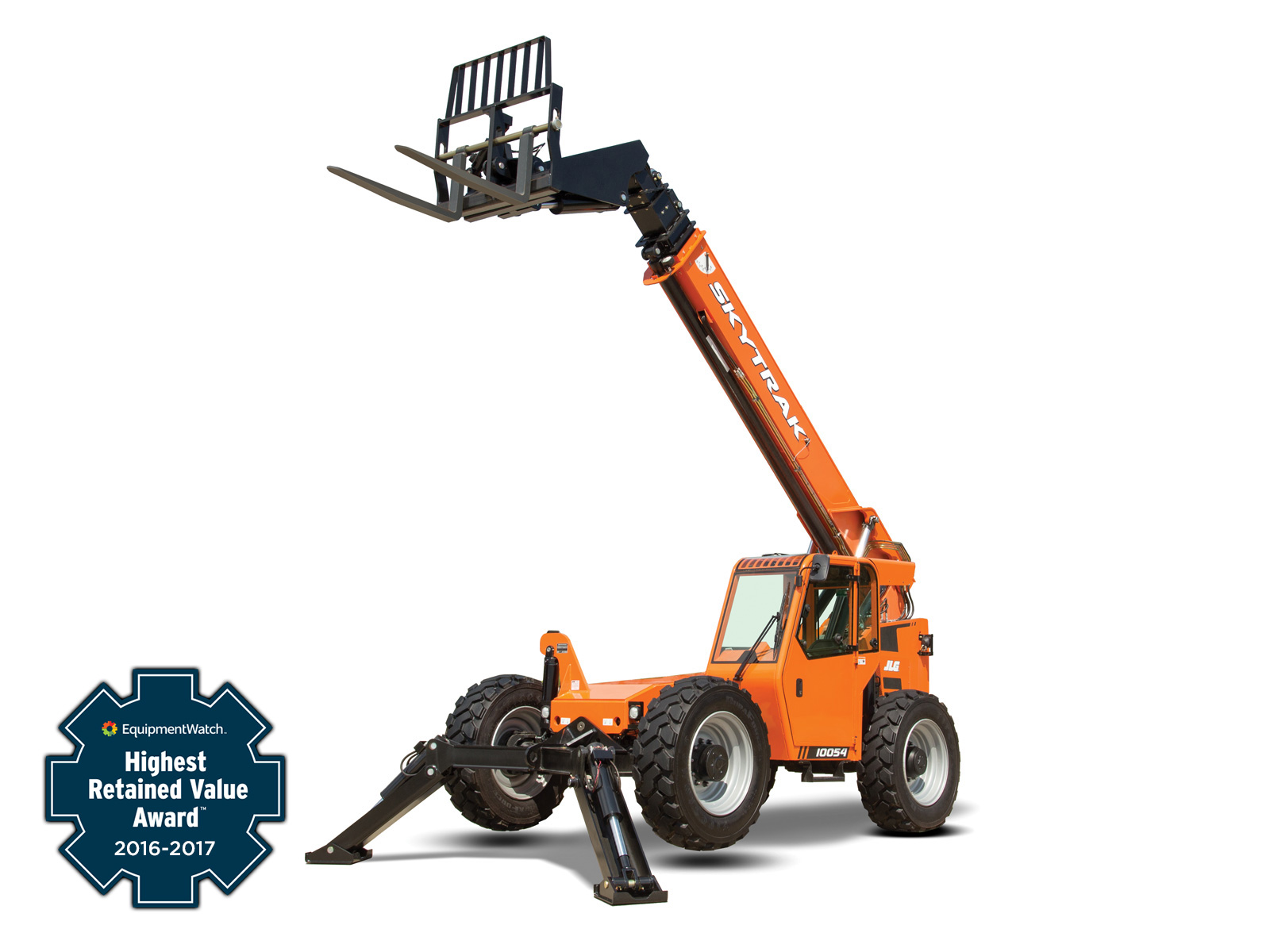

Skytrak/JLG 10054 Specs
Quick-reference specifications for the Skytrak/JLG 10054 telehandler, compiled from published specifications.
- Maximum Lift Height
- 53 ft 2 in16.21 m
- Operating Weight
- 28,200 lb12,791 kg
Performance 7 specs
| Maximum Load Capacity | 10,000 lb (4,536 kg) |
|---|---|
| Maximum Lift Height | 53 ft 2 in (16.21 m) |
| Forward Reach | 38 ft 9 in (11.8 m) |
| Load at Maximum Reach | 4,000 lb (1,814 kg) |
| Travel Speed | 22 mph (35 km/h) |
| Turning Radius (over tires) | 13 ft (3.96 m) |
| Ground Clearance | 18 in (0.46 m) |
Dimensions 4 specs
| Overall Length (without forks) | 19 ft 10 in (6.05 m) |
|---|---|
| Overall Width | 8 ft 6 in (2.59 m) |
| Height to Top of Cab | 8 ft 5 in (2.57 m) |
| Wheelbase | 10 ft (3.05 m) |
Weight 1 spec
| Operating Weight | 28,200 lb (12,791 kg) |
|---|
Power / Engine 5 specs
| Engine Type | Cummins QSF3.8 turbo diesel |
|---|---|
| Engine Power (standard) | 110 hp |
| Engine Power (optional) | 74 hp |
| Fuel Tank Capacity | 40 gal (151.4 L) |
| Transmission | 4-speed powershift forward, 3-speed reverse |
Hydraulics / Fluids 1 spec
| Hydraulic Tank Capacity | 52 gal (196.8 L) |
|---|
