Aerial Lift · Snorkel

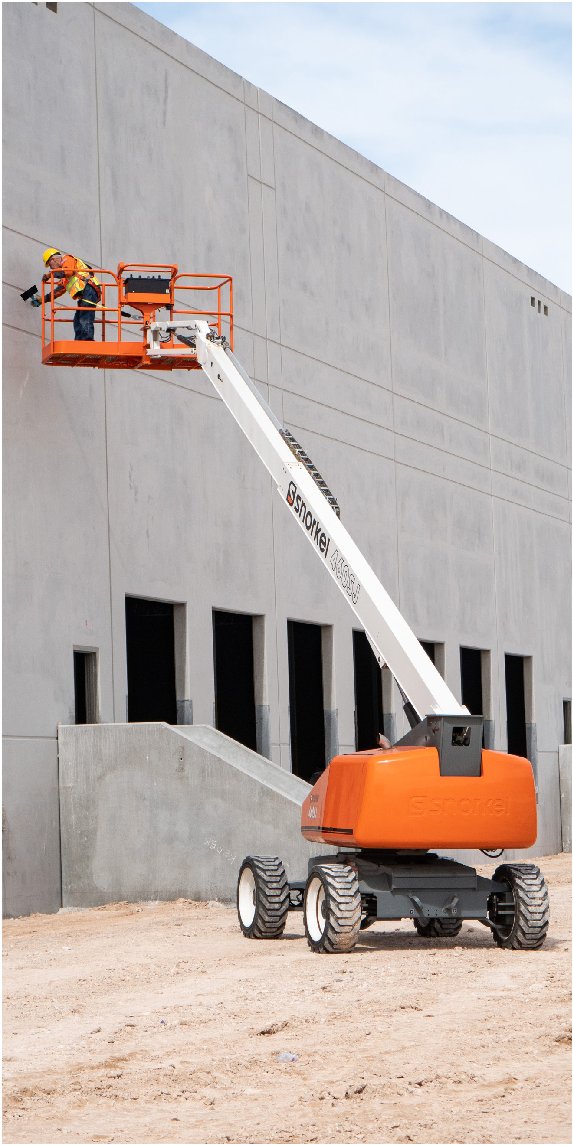

Snorkel 460SJ Specs
Quick-reference specifications for the Snorkel 460SJ aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Restricted)
- 1,000 lb454 kg
- Max. Working Height (A)
- 52 ft 1 in15.87 m
- Weight
- 17,260 lb7,829 kg
- Gradeability
- 50%
Performance 15 specs
| Max. Working Height (A) | 52 ft 1 in (15.87 m) |
|---|---|
| Max. Horizontal Reach | 42 ft (12.80 m) |
| Platform Capacity (Restricted) | 1,000 lb (454 kg) |
| Platform Capacity (Unrestricted) | 600 lb (272 kg) |
| Max. Wind Speed | 28 mph (12.5 m/s) |
| Max. Drive Speed (Stowed) | 3.75 mph (6.03 km/h) |
| Max. Drive Speed (Elevated) | 0.6 mph (0.96 km/h) |
| Gradeability | 50% |
| Jib Arc | 135° (+70°/-65°) |
| Superstructure Rotation | 360° continuous |
| Inside Turning Radius | 6 ft 9 in (2.06 m) |
| Outside Turning Radius | 16 ft 5 in (5.00 m) |
| Raise / Lower Time | 64 / 64 seconds |
| Tires (Foam-filled lug) | 355/55 D625 |
| Drive System | 4WD |
Dimensions 12 specs
| Max. Platform Height | 46 ft 1 in (14.04 m) |
|---|---|
| Platform Size | 8 ft x 3 ft (2.44 m x 0.91 m) |
| Stowed Length (B) | 28 ft 5 in (8.66 m) |
| Stowed Width (C) | 7 ft 7 in (2.31 m) |
| Stowed Height (D) | 7 ft 10 in (2.38 m) |
| Transport Length | 22 ft 4 in (6.81 m) |
| Transport Height | 9 ft 7 in (2.92 m) |
| Transport Width | 6 ft 10 in (2.08 m) |
| Ground Clearance | 12.5 in (318 mm) |
| Max. Drive Height | 46 ft 1 in (14.04 m) |
| Jib Length | 5 ft 6 in (1.67 m) |
| Tailswing | 35.5 in (0.90 m) |
Weight 1 spec
| Weight | 17,260 lb (7,829 kg) |
|---|
