Aerial Lift · Snorkel

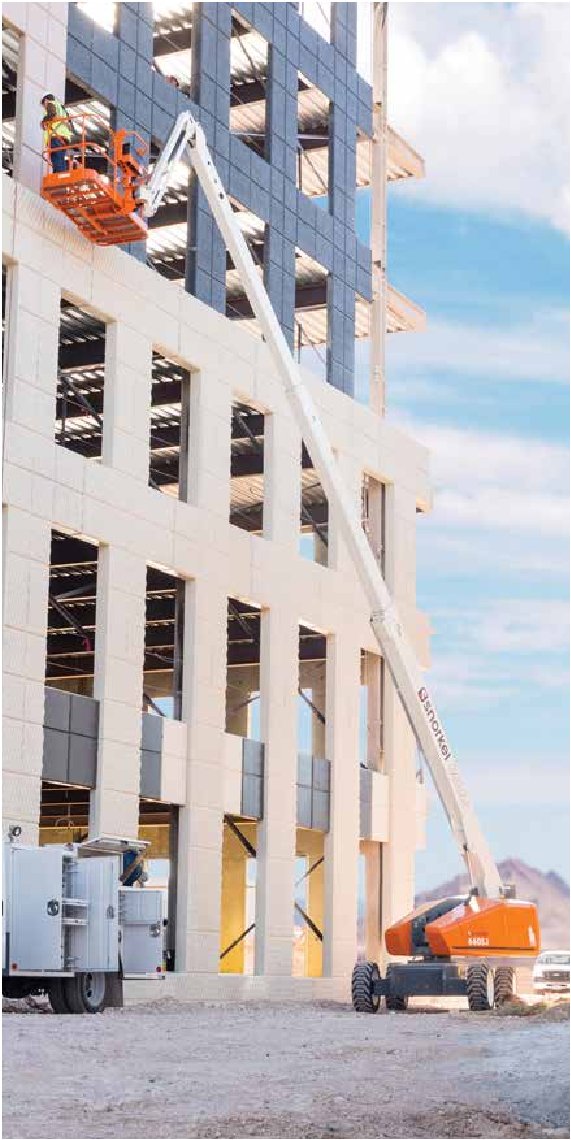

Snorkel 600S Specs
Quick-reference specifications for the Snorkel 600S aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL) unrestricted
- 600 lb
- Max. working height
- 66 ft
- Weight
- 24,640 lb
- Gradeability
- 45%
Performance 18 specs
| Max. working height | 66 ft |
|---|---|
| Max. horizontal reach | 52 ft 7 in |
| Platform capacity (SWL) unrestricted | 600 lb |
| Platform capacity (SWL) restricted | 1,000 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 3.5 mph |
| Max. drive speed (elevated) | 0.6 mph |
| Jib working arc | n/a |
| Platform rotation | 150° |
| Superstructure rotation (continuous) | 360° |
| Raise/lower time | 50/50 sec |
| Gradeability | 45% |
| Inside turning radius | 10 ft 1 in |
| Outside turning radius | 17 ft 1 in |
| Tires | 355/55 D625 foam filled lug |
| Oscillating axle (8” of oscillation) | 4-wheel drive |
| Drive system | 4-wheel drive |
| Airline to platform | AC generator 110 V/2.5 kW |
Dimensions 12 specs
| Max. platform height (A) | 60 ft |
|---|---|
| Platform size | 8 ft x 3 ft |
| Transport width | 7 ft 4 ft |
| Overall width (B) | 8 ft 1 in |
| Overall length (C) | 30 ft 1 in |
| Transport length | 30 ft 1 in |
| Stowed height (D) | 8 ft 3 in |
| Transport height | 8 ft 3 in |
| Ground clearance | 13.5 in |
| Max. drive height | 60 ft |
| Jib length | n/a |
| Tailswing | 47 in |
Weight 1 spec
| Weight | 24,640 lb |
|---|
Power / Engine 1 spec
| Auxiliary power unit | 12 V DC |
|---|
