Aerial Lift · Snorkel

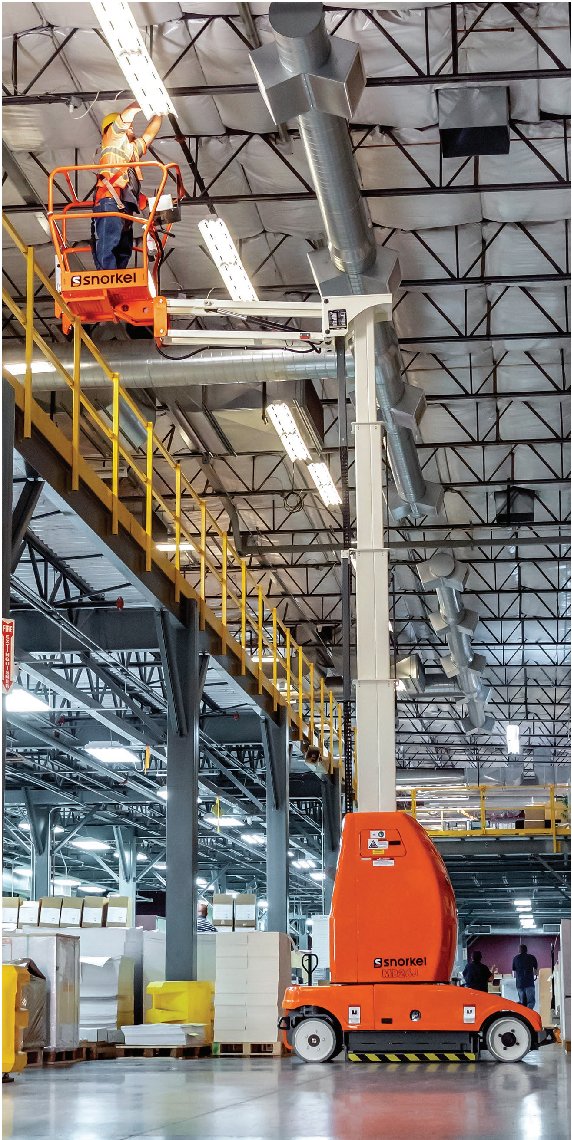

Snorkel MB20J Specs
Quick-reference specifications for the Snorkel MB20J aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 475 lb
- Max. working height
- 26 ft
- Weight
- 6,640 lb
- Gradeability
- 25%
Performance 12 specs
| Max. working height | 26 ft |
|---|---|
| Max. horizontal reach | 8 ft 6 in |
| Platform capacity (SWL) | 475 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 2.0 mph |
| Max. drive speed (elevated) | 0.3 mph |
| Jib arc | 130º |
| Mast rotation (non-continuous) | 360º |
| Raise/lower time | 54/26 sec |
| Gradeability | 25% |
| Inside turning radius | 11 in |
| Outside turning radius | 6 ft |
Dimensions 8 specs
| Max. platform height | 20 ft |
|---|---|
| Platform size | 30 in x 28 in |
| Overall width (A) | 32 in |
| Overall length (C) | 7 ft 11 in |
| Stowed height (B) | 6 ft 6 in |
| Ground clearance | 4 in |
| Max. drive height | 20 ft |
| Jib length | 3 ft 4 in |
Weight 1 spec
| Weight | 6,640 lb |
|---|
