Aerial Lift · Snorkel

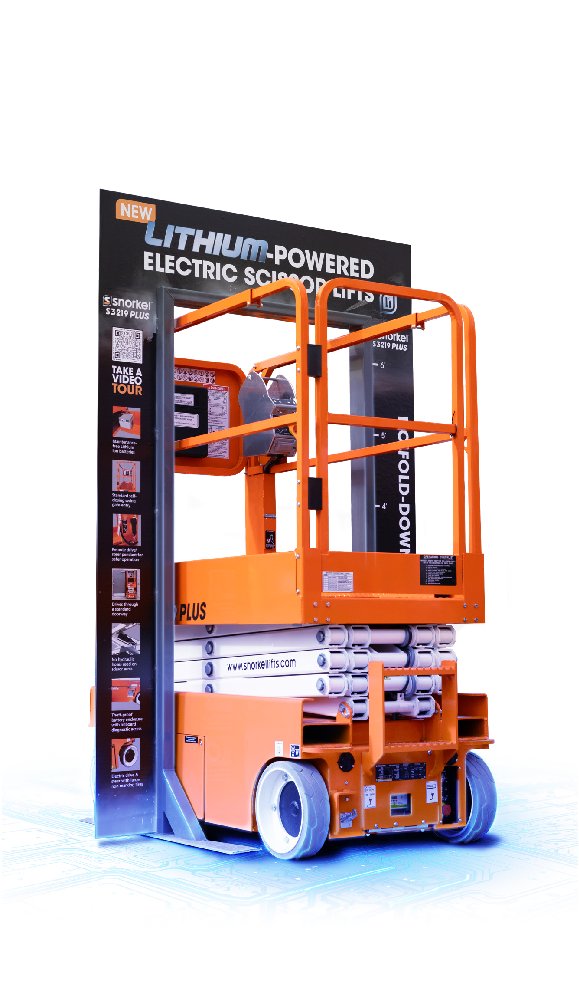

Snorkel S3219 PLUS Specs
Quick-reference specifications for the Snorkel S3219 PLUS aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 600 lb272 kg
- Max. Working Height
- 25 ft7.62 m
Performance 7 specs
| Max. Working Height | 25 ft (7.62 m) |
|---|---|
| Platform Capacity | 600 lb (272 kg) |
| Max. Wind Speed | 28 mph (12.5 m/s) |
| Max. Drive Speed (Stowed) | 2.0 mph (3.2 m/s) |
| Max. Drive Speed (Elevated) | 0.4 mph (0.6 m/s) |
| Tires (Non-marking solid rubber) | alarms |
| Drive System | including descent |
Dimensions 5 specs
| Max. Platform Height (A) | 19 ft (5.79 m) |
|---|---|
| Platform Size (Stowed) | 31.5 in x 69 in (80 cm x 1.75 m) |
| Platform Size (Extended) | 31.5 in x 105 in (80 cm x 2.67 m) |
| Deck Extension Length | 36 in (91.4 cm) |
| Ground Clearance (Stowed) | 2.63 in (67 mm) |
Power / Engine 1 spec
| Power Source | hour meter, battery |
|---|
