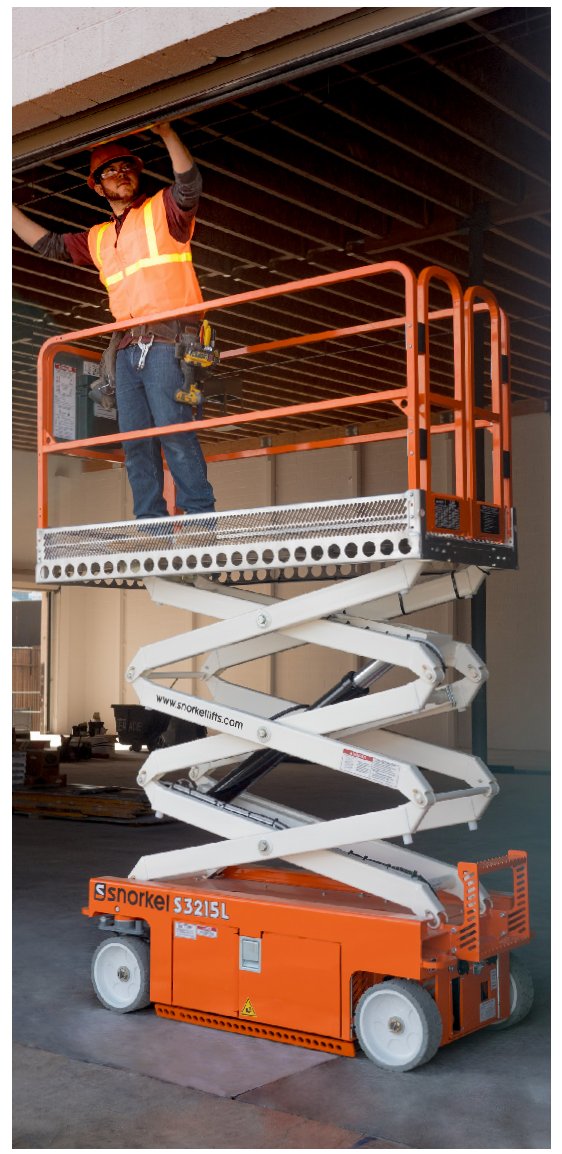

Snorkel S3215L Specs
Quick-reference specifications for the Snorkel S3215L aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 670 lb249 kg
- Max. Working Height
- 21 ft6.40 m
- Weight
- 2,100 lb952 kg
- Gradeability
- 25%
Performance 11 specs
| Max. Working Height | 21 ft (6.40 m) |
|---|---|
| Platform Capacity | 670 lb (249 kg) |
| Max. Wind Speed | 28 mph (12.5 m/s) |
| Max. Drive Speed (Stowed) | 2.0 mph (3.2 km/h) |
| Max. Drive Speed (Elevated) | 0.4 mph (0.6 km/h) |
| Raise/Lower Time | 20 / 38 sec |
| Gradeability | 25% |
| Inside Turning Radius | 4 in (101 mm) |
| Outside Turning Radius | 64.25 in (1.63 m) |
| Tires (Non-marking solid rubber) | 12 in x 4 in (30.5 cm x 10.2 cm) |
| Drive System | 2WD – hydraulic |
Dimensions 7 specs
| Max. Platform Height (A) | 15 ft (4.57 m) |
|---|---|
| Platform Size (Stowed) | 28.25 in x 73.5 in (0.72 m x 1.86 m) |
| Overall Length (B) | 79.4 in (2.02 m) |
| Overall Width (C) | 32 in (81.3 cm) |
| Stowed Height (D) | 76 in (1.93 m) |
| Ground Clearance (Stowed) | 2.63 in (67 mm) |
| Max. Drive Height | 15 ft (4.57 m) |
Weight 1 spec
| Weight | 2,100 lb (952 kg) |
|---|
Power / Engine 1 spec
| Charger | 100–240VAC; 50–60Hz, 25amp |
|---|
