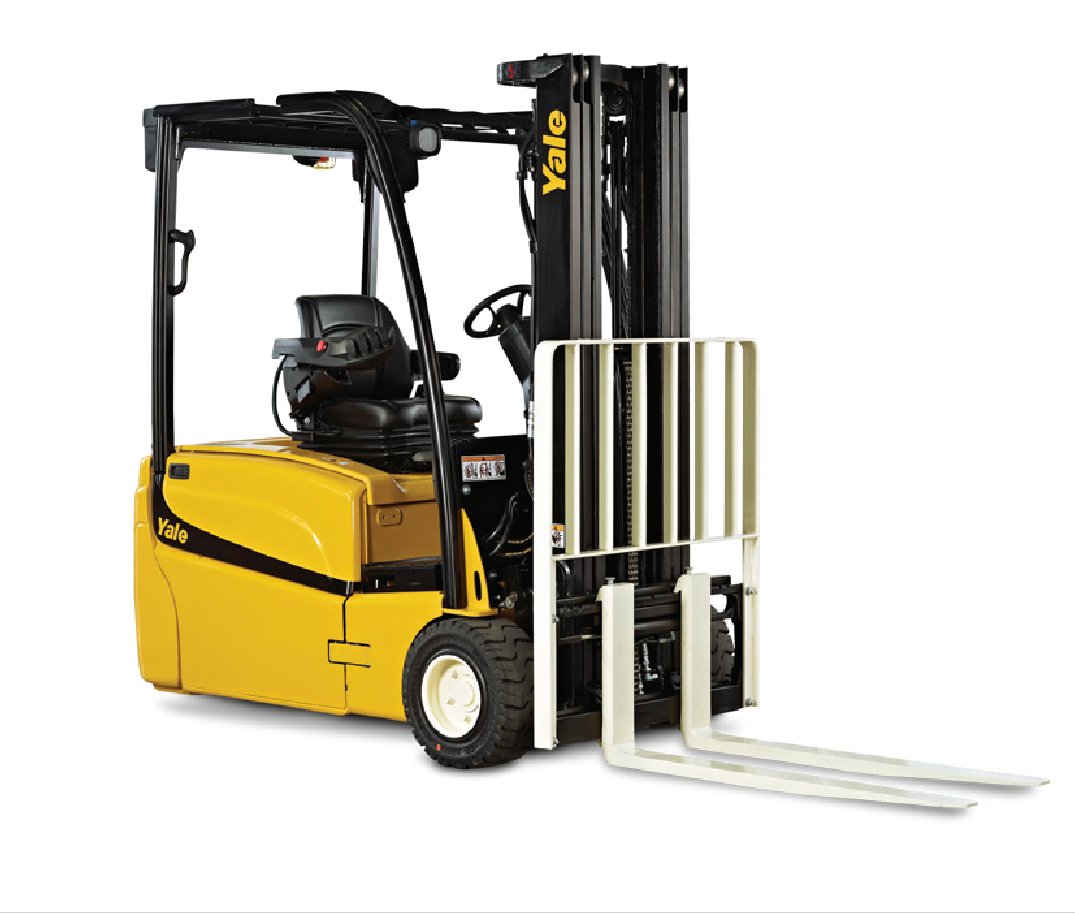

Yale ERP18VT Specs
Quick-reference specifications for the Yale ERP18VT forklift, taken from the manufacturer’s spec sheet.
- Rated capacity/rated load Q
- 1.8t
- Gradeability, laden/unladen
- 10 / 15 %
Performance 15 specs
| Rated capacity/rated load Q | 1.8 (t) |
|---|---|
| Tyres: P=pneumatic, C=cushion, SE=superelastic | SE |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Turning radius Wa | 1577 (mm) |
| Internal turning radius b | 0 (mm) |
| Travel speed, laden/unladen ] | 16 / 16 km/h |
| Travel speed, laden/unladen, backwards | 16 / 16 km/h |
| Lift speed, laden/unladen | 0.41 / 0.60 m/s |
| Lowering speed, laden/unladen | 0.46 / 0.40 m/s |
| Drawbar pull, laden/unladen | 3337 / 3646 N |
| Max. drawbar pull, laden/unladen | 11355 / 11664 N |
| Gradeability, laden/unladen | 10 / 15 % |
| Max. gradeability, laden/unladen | 23 / 35 % |
| Service brake | Electric |
| Sound pressure level at the driver’s seat LPAZ H | 69 dB (A) |
Dimensions 23 specs
| Load centre distance c | 500 (mm) |
|---|---|
| Load distance, centre of drive axle to fork x | 321 (mm) |
| Wheelbase y | 1386 (mm) |
| Tyre size, front | 200 / 50-10 |
| Tyre size, rear | 15 x 4.5-8 |
| Height, mast lowered h | 2180 (mm) |
| Free lift t h | 100 (mm) |
| Lift t h | 3390 (mm) |
| Height, mast extended : h | 4006 (mm) |
| Height of overhead guard (cabin) m h | 2070 (mm) |
| Seat height relating to SIP/stand height 8 h | 919 (mm) |
| Coupling height h | 500 (mm) |
| Overall length l | 2898 (mm) |
| Length to face of forks l | 1898 (mm) |
| Overall width b1/b | 1116 (mm) |
| Fork dimensions ISO 2331 s/e/l | 40 / 80 / 1000 (mm) |
| Fork carriage width w b | 977 (mm) |
| Ground clearance, laden, below mast m | 70 (mm) |
| Ground clearance at centre of wheelbase m | 100 (mm) |
| Aisle width for pallets 1000 × 1200 crossways Ast | 3228 (mm) |
| Aisle width for pallets 800 × 1200 lengthways Ast | 3350 (mm) |
| Step Height (from ground to running board) | 557 mm |
| Step Height | 484 mm |
Weight 1 spec
| Service weight n | 3335 kg |
|---|
Power / Engine 3 specs
| Drive motor rating S2 60 min | 2x 5.0 kW |
|---|---|
| Lift motor rating at S3 15% | 12 kW |
| Type of drive unit | Electric transmission |
Hydraulics / Fluids 3 specs
| Operating pressure for attachments | 180 bar |
|---|---|
| Oil volume for attachments ◊ | 40 ℓ/min |
| Hydraulic oil tank, capacity | 16.8 ℓ |
