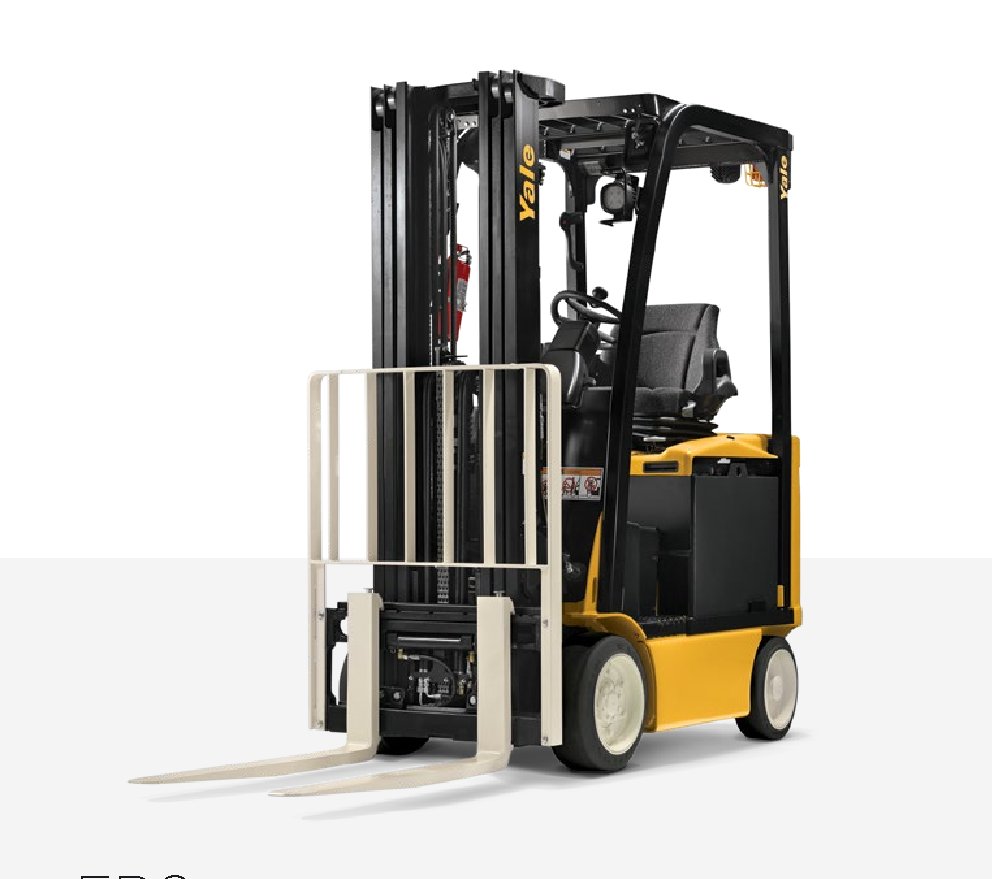

Yale ERC120VH Specs
Quick-reference specifications for the Yale ERC120VH forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 10000 lb4536 kg
Performance 10 specs
| Rated capacity | 10000 lb (4536 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Mast tilt Std Opt | 5F / 5B 8F / 5B degrees |
| Outside turning radius | 92.2 in (2341 mm) |
| Lower speed Std 2-stage LFL mast NL / RL | 73 / 89 ft/min (0.37 / 0.45 m/sec) |
| Lower speed Opt 2-stage FFL mast NL / RL | 57 / 81 ft/min (0.29 / 0.41 m/sec) |
| Lower speed Opt 3-stage FFL mast NL / RL | 63 / 87 ft/min (0.32 / 0.44 m/sec) |
| Drawbar pull 5 minute rating NL / RL VOLTS 36 | 3322 / 3185 lbf |
| Drawbar pull 5 minute rating NL / RL VOLTS 48 | 3970 / 3809 lbf |
| Drawbar pull 5 minute rating NL / RL VOLTS 80 | 4049 / 3885 lbf |
Dimensions 15 specs
| Tire type – cushion, solid, pneumatic, etc. Drive / steer | Cushion / Cushion |
|---|---|
| Tire size Drive / steer | 22 x 12 x 16 / 18 x 7 x 12.1 in |
| Tread Center of tires Narr dr / wide dr / steer | 40 / 43.9 / 38.3 in (1015 / 1115 / 972 mm) |
| Mast – lowered height Std Mast | 84.2 in (2138 mm) |
| Mast – extended height Std mast with / without LBR | 159 / 144 in (4031 / 3657 mm) |
| Overhead guard height Std / opt / opt flat plate | 94 / 91 / 87.1 in (2388 / 2311 / 2212 mm) |
| Tow pin height Vertical center of pin | 12.7 in (324 mm) |
| Overall width Standard tread / wide tread | 52 / 55.9 in (1320 / 1420 mm) |
| Forks Thickness x width x length | 2 x 5.9 x 42 in (50 x 150 x 1067 mm) |
| Ground clearance Lowest point NL / RL | 3.6 / 3.4 in (92 / 87 mm) |
| Ground clearance Center of truck NL / RL | 5.3 / 5.1 in (134 / 130 mm) |
| Load distance Center of wheel to face of forks | 17.8 in (452 mm) |
| Length to face of forks Chassis length | 103.1 in (2621 mm) |
| Wheelbase | 68.5 in (1739 mm) |
| Right angle stack | 158 in (4012 mm) |
Power / Engine 6 specs
| Floor to top of battery rollers | 20 in (509 mm) |
|---|---|
| Battery compartment Height With battery / without rollers | 24.4 / 24 in (620 / 609 mm) |
| Battery compartment Width | 45.4 in (1152 mm) |
| Battery compartment Nominal SIZE | 45 in |
| Battery compartment Length Actual | 45.7 in (1161 mm) |
| Truck weight Without battery NL | 12300 lb (5579 kg) |
