Forklift · Yale

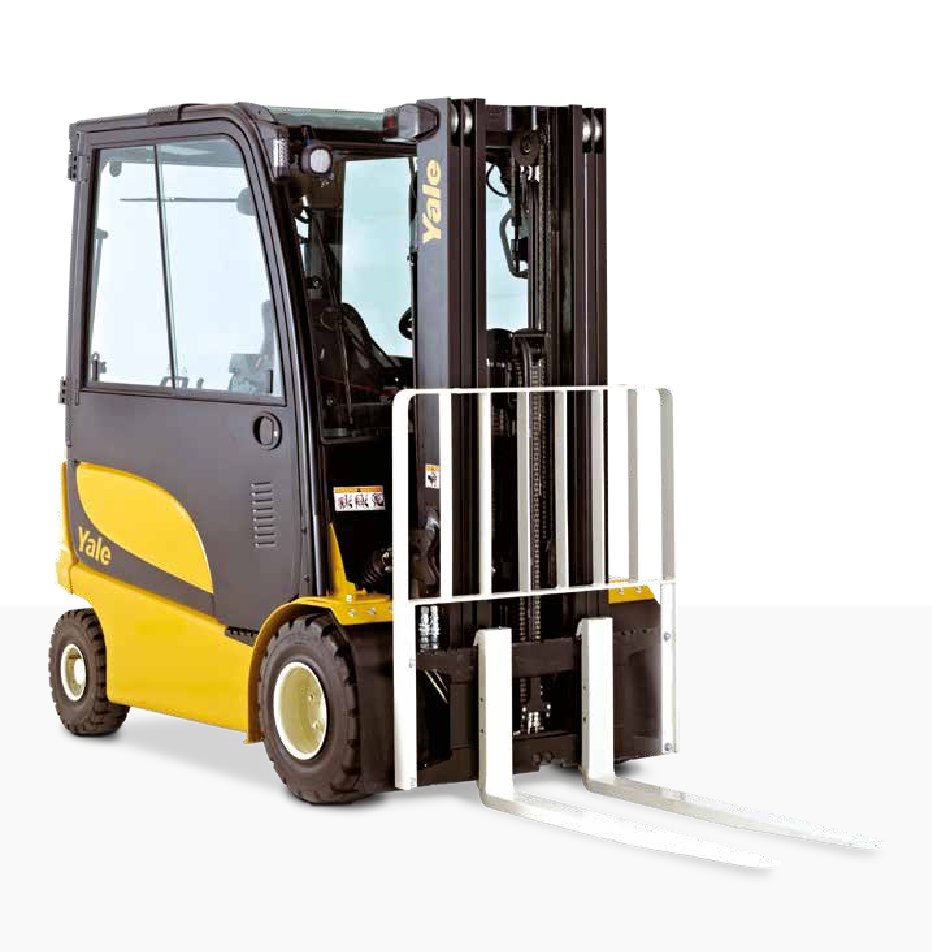

Yale ERP25VL Specs
Quick-reference specifications for the Yale ERP25VL forklift, from the manufacturer’s spec sheet and published specifications.
Performance 6 specs
| Load Capacity | 5,512 lb (2,500 kg) |
|---|---|
| Traction Motor | 27.19 hp (20 kW) |
| Hoist Motor | 16 kW |
| Travel Speed with/without Load | 11.2 mph (18 km/h) |
| Hoisting Speed with/without Load | 0.38/0.63 m/s |
| Lowering Speed with Load | 0.57 m/s |
Dimensions 5 specs
| Overall Length | 11.4 ft (3,480 mm) |
|---|---|
| Overall Width | 4.2 ft (1,289 mm) |
| Height Mast Lowered | 7.2 ft (2,193 mm) |
| Wheelbase | 5.7 ft (1,750 mm) |
| Load Center Distance | 1.6 ft (500 mm) |
Weight 2 specs
| Service Weight (max battery) | 9,836 lb (4,465 kg) |
|---|---|
| Battery Weight | 3,263 lb (1,480 kg) |
Power / Engine 2 specs
| Battery according to DIN | 43531/35/36 A, B, C, no |
|---|---|
| Voltage | 80 V |
Hydraulics / Fluids 2 specs
| Hydraulic | 2 x 10.0 |
|---|---|
| Tilt Forward/Backward | 5°/5° |
