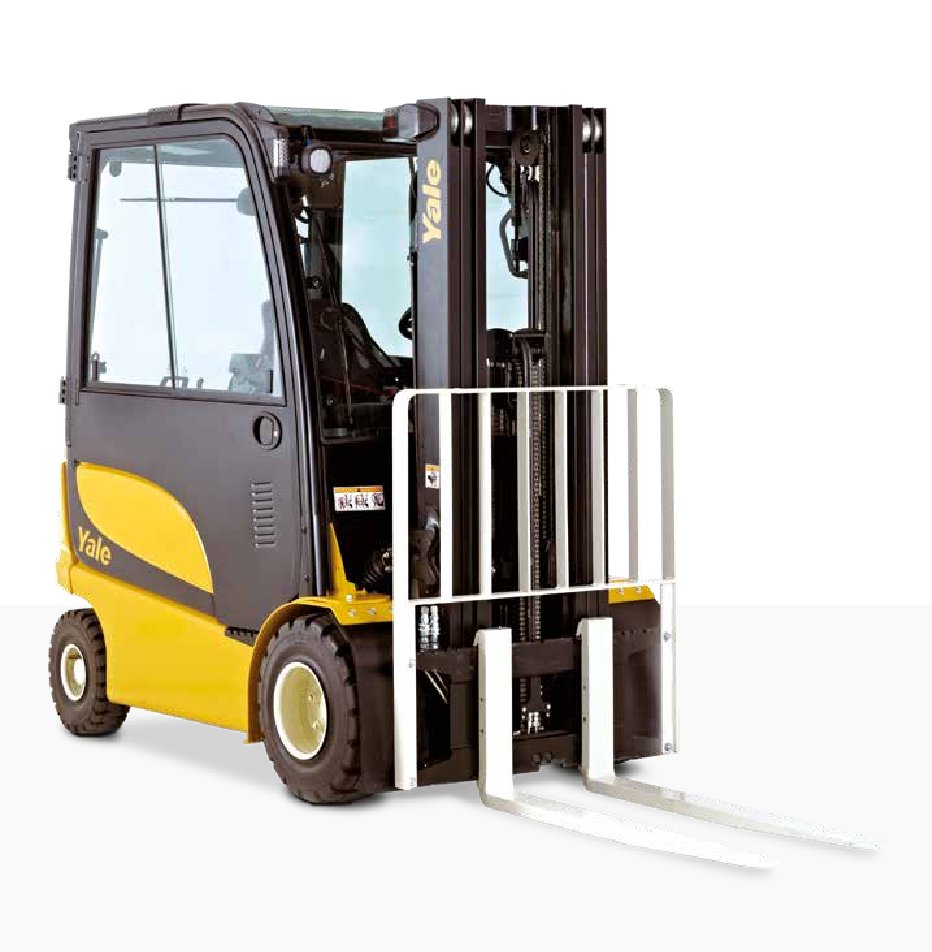

Yale ERP30VL Specs
Quick-reference specifications for the Yale ERP30VL forklift, from the manufacturer’s spec sheet and published specifications.
Performance 6 specs
| Load Capacity | 6,614 lb (3,000 kg) |
|---|---|
| Load Centre Distance | 19.7 in (500 mm) |
| Travel Speed (loaded/unloaded) | 12.1 / 13 mph (19.5 / 21 km/h) |
| Hoisting Speed (loaded/unloaded) | 0.42 / 0.63 m/s (1.38 / 2.07 ft/s) |
| Lowering Speed (loaded) | 0.56 m/s (1.84 ft/s) |
| Turning Radius | 6.69 ft (2.04 m) |
Dimensions 5 specs
| Length | 114.6 in (3,492 mm) |
|---|---|
| Width | 50.7 in (1,289 mm) |
| Height (closed mast) | 86.3 in (2,192 mm) |
| Lifting Height (standard 3-stage) | 190.6 ft (5,810 mm) |
| Load Centre | 19.7 in (500 mm) |
Weight 2 specs
| Total Weight | 6,713 lb (3,044 kg) |
|---|---|
| Battery Weight | 4,312 lb (1,956 kg) |
Power / Engine 4 specs
| Battery according to DIN | 43531/35/36 A, B, C, no |
|---|---|
| Voltage | 80 V |
| Traction Motor | 20 kW |
| Hoist Motor | 16 kW |
Hydraulics / Fluids 5 specs
| Hydraulic | 2 x 10.0 |
|---|---|
| Operating Pressure (attachments) | 2,248 psi (155 bar) |
| Oil Volume (attachments) | 20-40 l/min (5.3-10.6 gal/min) |
| Hydraulic Oil Tank Capacity | 7.7 gal (29.3 l) |
| Sound Pressure Level (driver’s seat) | 67 dB (A) |
