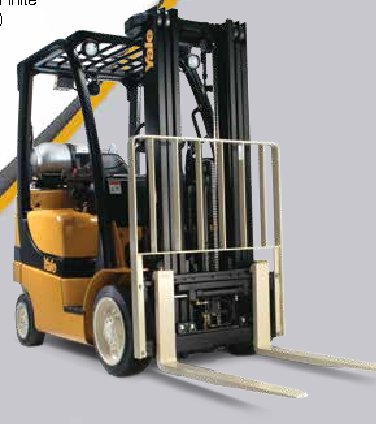

Yale GC030VX Specs
Quick-reference specifications for the Yale GC030VX forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 3000 lb1360 kg
- Gradeability @ 1 mph RL/NL
- 35/27 %
Performance 12 specs
| Rated Capacity | 3000 lb (1360 kg) |
|---|---|
| Mast Tilt Angles, Forward/Backward | 5F/5B degrees |
| Turning Radius, Minimum Outside (OTR) | 77.0 in (1955 mm) |
| Travel Speed RL/NL | 10.6/10.7 mph (17.1/17.3 km/h) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 114/118 ft/min (.58/.60 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 102/106 ft/min (.52/.54 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 106/110 ft/min (.54/.56 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 100/92 ft/min (.51/.47 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 91/73 ft/min (.46/.37 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 94/81 ft/min (.48/.41 m/s) |
| Drawbar Pull @ 1 mph RL/NL | 3152/1690 lb (1430/767 kg) |
| Gradeability @ 1 mph RL/NL | 35/27 % |
Dimensions 17 specs
| Load Center, Distance | 24.0 in (610 mm) |
|---|---|
| Step Height | 19.1 in (485 mm) |
| Lift Height, Top of Fork (TOF) | 127 in (3232 mm) |
| Forks, Thickness x Width x Length | 1.6 X 3.9 X 42.0 in (40 X 100 X 1067 mm) |
| Fork Spread, Outside Dimensions | 33.5 in (850 mm) |
| Length To Face of Forks | 81.6 in (2074 mm) |
| Overall Width, Standard Tread | 37.0 in (940 mm) |
| Height, Standard Mast – Lowered | 82 in (2080 mm) |
| Height, Standard Mast – Extended with LBR | 176 in (4455 mm) |
| Height, Standard Mast – Extended without LBR | 150 in (3806 mm) |
| Height, Standard Overhead Guard | 83 in (2088 mm) |
| Height, Optional Overhead Guard | 80 in (2021 mm) |
| Length, Center of Wheel to Face of Forks | 14.1 in (358 mm) |
| Tire Size, Front | 18 X 6 X 12.125 |
| Tire Size, Rear | 15 X 5 X 11.25 |
| Wheelbase | 54.5 in (1385 mm) |
| Ground Clearance, Center of Wheelbase NL | 4.2 in (107 mm) |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL) NL | 6159 lb (2794 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL) RL | 9159 lb (4155 kg) |
| Axle Loading, Static Front/Rear NL | 2821/3338 lb (1280/1514 kg) |
| Axle Loading, Static Front/Rear RL | 8039/1120 lb (3647/508 kg) |
Power / Engine 5 specs
| Power Type | LPG |
|---|---|
| Engine | PSI (2.0 L) |
| Battery Type | Maintenance Free |
| Volts/Cold Cranking Amps | 12/440 v/cca |
| Engine, Manufacturer/Model | PSI (2.0 L) |
