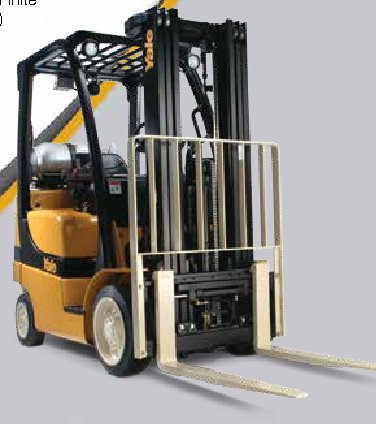

Yale GC040SVX Specs
Quick-reference specifications for the Yale GC040SVX forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 4000 lb1814 kg
- Gradeability @ 1 mph RL/NL
- 29/22 %
Performance 13 specs
| Rated Capacity | 4000 lb (1814 kg) |
|---|---|
| Load Center, Distance | 24.0 in (610 mm) |
| Mast Tilt Angles, Forward/Backward | 5F/5B degrees |
| Turning Radius, Minimum Outside (OTR) | 78.1 in (1985 mm) |
| Travel Speed RL/NL | 10.6/10.7 mph (17.1/17.3 km/h) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 114/118 ft/min (.58/.60 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 102/106 ft/min (.52/.54 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 106/110 ft/min (.54/.56 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 100/92 ft/min (.51/.47 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 91/73 ft/min (.46/.37 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 94/81 ft/min (.48/.41 m/s) |
| Drawbar Pull @ 1 mph RL/NL | 3078/1579 lb (1396/716 kg) |
| Gradeability @ 1 mph RL/NL | 29/22 % |
Dimensions 19 specs
| Step Height | 19.1 in (485 mm) |
|---|---|
| Tire Type – Cushion, Solid, Pneumatic | Cushion |
| Lift Height, Top of Fork (TOF) | 127 in (3232 mm) |
| Forks, Thickness x Width x Length | 1.6 X 3.9 X 42.0 in (40 X 100 X 1067 mm) |
| Fork Spread, Outside Dimensions | 33.5 in (850 mm) |
| Length To Face of Forks | 84.4 in (2143 mm) |
| Overall Width, Standard Tread | 38.8 in (986 mm) |
| Overall Width, Wide Tread | 42.7 in (1084 mm) |
| Height, Standard Mast – Lowered | 82 in (2080 mm) |
| Height, Standard Mast – Extended with LBR | 176 in (4455 mm) |
| Height, Standard Mast – Extended without LBR | 150 in (3806 mm) |
| Height, Standard Overhead Guard | 83 in (2088 mm) |
| Height, Optional Overhead Guard | 80 in (2021 mm) |
| Length, Center of Wheel to Face of Forks | 14.1 in (358 mm) |
| Tire Size, Front | 18 X 7 X 12.125 |
| Tire Size, Rear | 15 X 5 X 11.25 |
| Wheelbase | 54.5 in (1385 mm) |
| Ground Clearance, Center of Wheelbase NL | 4.2 in (107 mm) |
| Service Brake – Method of Control/Operation | Foot/Hydraulic |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL) NL | 6971 lb (3162 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL) RL | 10971 lb (4976 kg) |
| Axle Loading, Static Front/Rear NL | 2624/4347 lb (1190/1972 kg) |
| Axle Loading, Static Front/Rear RL | 9582/1389 lb (4346/630 kg) |
Power / Engine 6 specs
| Engine | PSI (2.0 L) |
|---|---|
| Power Type | LPG |
| Battery Type | Maintenance Free |
| Volts/Cold Cranking Amps | 12/440 v/cca |
| Engine, Manufacturer/Model | PSI (2.0 L) |
| Standard Speeds, Forward – Reverse | 1-1 |
