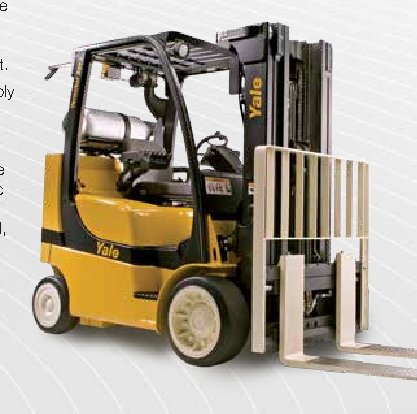

Yale GC080VXBCS Specs
Quick-reference specifications for the Yale GC080VXBCS forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 8000 lb3629 kg
- Max Gradeability RL/NL 1-Speed
- 35/26 %
Performance 16 specs
| Rated Capacity | 8000 lb (3629 kg) |
|---|---|
| Mast Tilt Angles, Forward/Backward | 5F/6B degrees |
| Turning Radius, Minimum Outside (OTR) | 82.8 in (2102 mm) |
| Travel Speed RL/NL 1-Speed | 10.7/10.7 mph (17.2/17.2 km/h) |
| Travel Speed RL/NL 2-Speed | 13.7/13.9 mph (22.1/22.4 km/h) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 120/122 ft/min (.61 /.62 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 106/108 ft/min (.54/.55 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 112/114 ft/min (.57/.58 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 93/108 ft/min (.47/.55 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 71/98 ft/min (.36/.50 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 87/104 ft/min (.44/.53 m/s) |
| Max Gradeability RL/NL 1-Speed | 35/26 % |
| Max Gradeability RL/NL 2-Speed | 44/26 % |
| Gradeability @ 1 mph RL/NL 1-Speed | 30/26 % |
| Gradeability @ 1 mph RL/NL 2-Speed | 36/26 % |
| Service Brake – Method of Control/Operation | Foot/Hydraulic |
Dimensions 22 specs
| Load Center, Distance | 24 in (610 mm) |
|---|---|
| Step Height | 15.6 in (396 mm) |
| Tire Type – Cushion, Solid, Pneumatic | Cushion |
| Lift Height, Top of Fork (TOF) | 120 in (3050 mm) |
| Lift Heights, Standard Limited Free Lift (LFL) with LBR | 6 in (150 mm) |
| Lift Heights, Optional Full Free Lift (FFL) with LBR | 35 in (900 mm) |
| Forks, Thickness x Width x Length | 2 X 5 X 48 in (50 X 125 X 1219 mm) |
| Fork Spread, Outside Dimensions | 38.3 in (972 mm) |
| Length To Face of Forks | 95.6 in (2427 mm) |
| Overall Width, Standard Tread | 46.1 in (1170 mm) |
| Overall Width, Wide Tread | 50.0 in (1270 mm) |
| Height, Standard Mast – Lowered | 84 in (2134 mm) |
| Height, Standard Mast – Extended with LBR | 169 in (4284 mm) |
| Height, Standard Mast – Extended without LBR | 149 in (3783 mm) |
| Height, Standard Overhead Guard | 86 in (2171 mm) |
| Height, Optional Overhead Guard | 83 in (2104 mm) |
| Length, Center of Wheel to Face of Forks | 17.6 in (447 mm) |
| Tire Size, Front | 22 X 9 X16 |
| Tire Size, Rear | 18 X 7 X 12.2 |
| Wheelbase | 61.8 in (1570 mm) |
| Ground Clearance, Lowest Point NL (with RL subtract | 4.5 in (114 mm) |
| Ground Clearance, Center of Wheelbase NL | 6.0 in (152 mm) |
Weight 4 specs
| Weight, Standard Truck (Standard 2-Stg. LFL) NL | 13340 lb (6051 kg) |
|---|---|
| Weight, Standard Truck (Standard 2-Stg. LFL) RL | 21340 lb (9680 kg) |
| Axle Loading, Static Front/Rear NL | 5555 / 7785 lb (2520 / 3531 kg) |
| Axle Loading, Static Front/Rear RL | 18940 / 2400 lb (8591 / 1089 kg) |
Power / Engine 5 specs
| Engine | Kubota 3.8 L LPG |
|---|---|
| Power Type | LPG |
| Battery Type | Maintenance Free |
| Volts/Cold Cranking Amps | 12/475 v/cca |
| Engine, Manufacturer/Model | Kubota WG3800 LPG |
