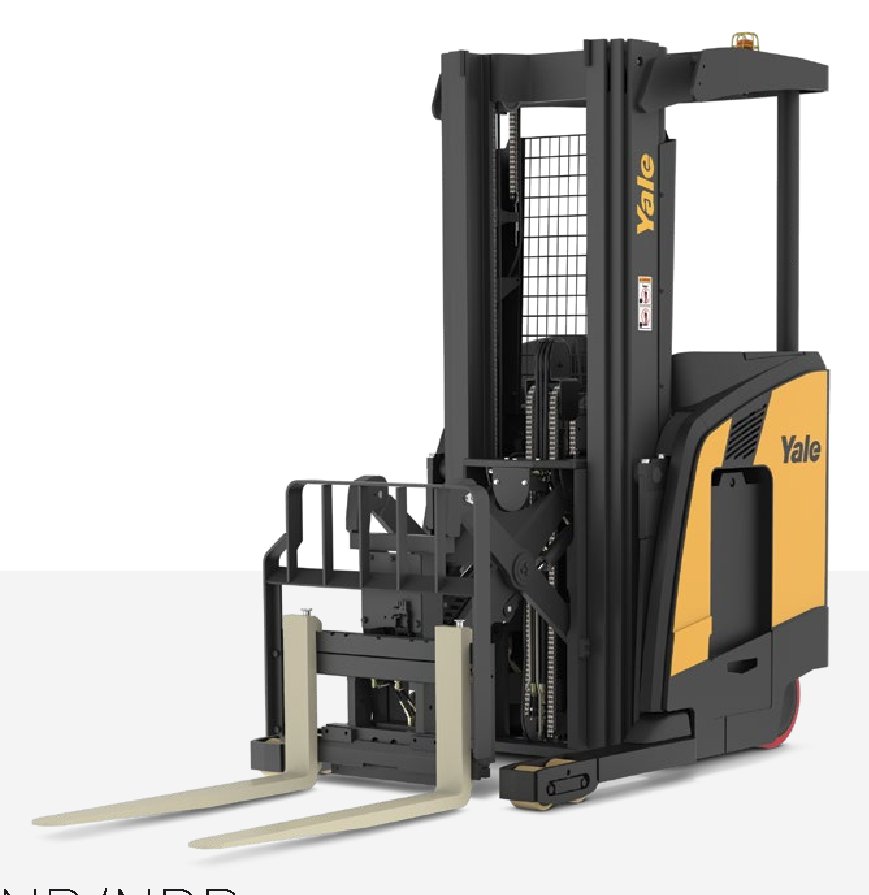

Yale NR035DC Specs
Quick-reference specifications for the Yale NR035DC forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3500 lb1588 kg
Performance 9 specs
| Rated capacity | 3500 lb (1588 kg) |
|---|---|
| Load center Distance | 24 in (610 mm) |
| Mast tilt angle Forward/back | 3 / 4 degrees |
| Stability Comply with ANSI | YES |
| TRAVEL SPEED Rearward (chassis first) – empty/RL | 6.5/6.5 mph |
| LIFT SPEED Empty | 66 ft/min |
| Lowering speeds Empty | 85 ft/min |
| Lowering speeds RL | 85 ft/min |
| Brakes, service/parking (method of control) | Foot / auto |
Dimensions 5 specs
| Tire type Load/caster/drive | Poly/Poly/Poly |
|---|---|
| Axle loading with assembly retracted (front/rear) | 6773/4160 lb |
| Forks Standard (length x width x thickness) | 1.60 x 3.9 x 42 in |
| Size – front load wheels, standard | 5 x 3.9 |
| Size, standard – drive tire/dual casters | 13.5 x 5.5 / 7.9 x 2.2 |
Power / Engine 11 specs
| Power type | Electric – 24 V Electric – 36 V |
|---|---|
| Truck weight Without battery (approximate) | 5340 lb |
| Battery compartment size 12.5″ battery compartment – (LxWxH) | 39.0 x 12.5 x 31.5 in |
| Turning radius – minimum outside 12.5″ battery compartment | 65.67 in |
| Turning radius – minimum outside 14.25″ battery compartment | 65.67 in |
| Turning radius – minimum outside 16.25″ battery compartment | 67.60 in |
| Wheelbase 12.5″ battery ccompartment | 55.6 in |
| Wheelbase 14.25″ battery compartment | 55.6 in |
| Wheelbase 16.25″ battery compartment | 57.6 in |
| Traction motor control method | Transistor |
| Hoist motor control method | Transistor |
