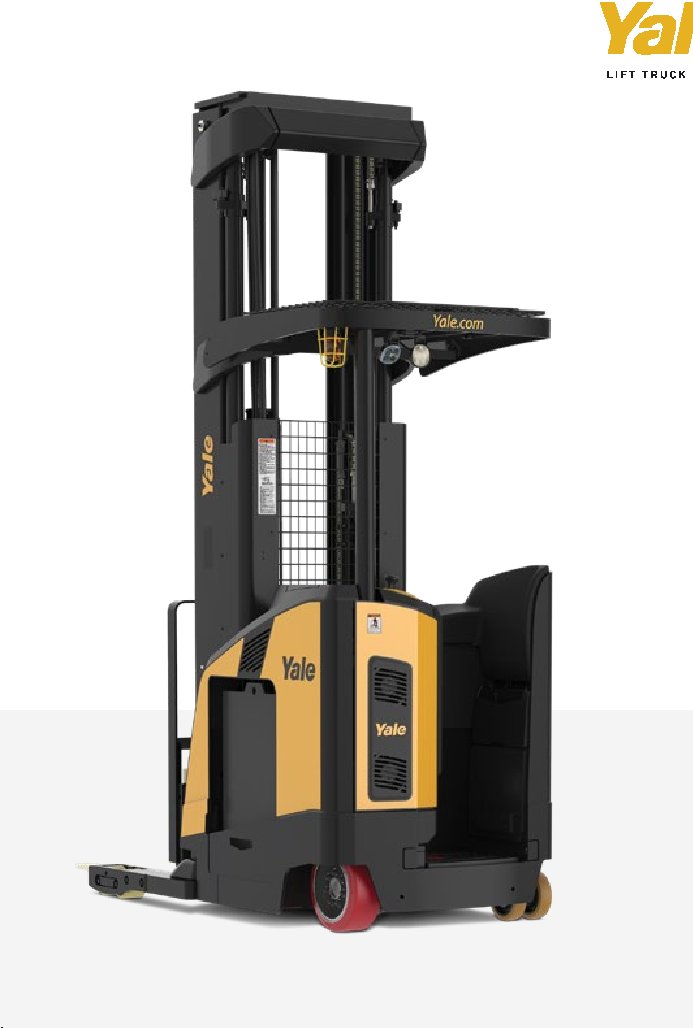

Yale NR045EC Specs
Quick-reference specifications for the Yale NR045EC forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 4500 lb2041 kg
Performance 26 specs
| Rated capacity | 4500 lb (2041 kg) |
|---|---|
| Mast tilt angle Forward/back | 3 / 4 degrees |
| Stability Comply with ANSI | YES |
| TRAVEL SPEED Rearward (chassis first) Empty/RL STANDARD | 7.5/6.5 † mph |
| TRAVEL SPEED Rearward (chassis first) Empty/RL OPTIONAL | 8.0/6.5 † mph |
| TRAVEL SPEED Forward (forks first) Empty/RL STANDARD | 7.5/6.5 † mph |
| TRAVEL SPEED Forward (forks first) Empty/RL OPTIONAL | 8.0/6.5 † mph |
| LIFT SPEED Empty STANDARD 9.4″ MAST | 150 ft/min |
| LIFT SPEED Empty OPTIONAL 9.4″ MAST | 175 ft/min |
| LIFT SPEED 1,000 lb. STANDARD 9.4″ MAST | 133 ft/min |
| LIFT SPEED 1,000 lb. OPTIONAL 9.4″ MAST | 150 ft/min |
| LIFT SPEED 2,000 lb. STANDARD 9.4″ MAST | 115 ft/min |
| LIFT SPEED 2,000 lb. OPTIONAL 9.4″ MAST | 130 ft/min |
| LIFT SPEED 3,000 lb. STANDARD 9.4″ MAST | 100 ft/min |
| LIFT SPEED 3,000 lb. OPTIONAL 9.4″ MAST | 115 ft/min |
| LIFT SPEED 3,500 lb. STANDARD 9.4″ MAST | 87 ft/min |
| LIFT SPEED 3,500 lb. OPTIONAL 9.4″ MAST | 105 ft/min |
| LIFT SPEED 4,000 lb. STANDARD 9.4″ MAST | 83 ft/min |
| LIFT SPEED 4,000 lb. OPTIONAL 9.4″ MAST | 100 ft/min |
| LIFT SPEED 4,500 lb. STANDARD 9.4″ MAST | 80 ft/min |
| LIFT SPEED 4,500 lb. OPTIONAL 9.4″ MAST | 95 ft/min |
| Lowering speeds Empty STANDARD 9.4″ MAST | 140 ft/min |
| Lowering speeds Empty OPTIONAL 9.4″ MAST | 160 †† ft/min |
| Lowering speeds RL STANDARD 9.4″ MAST | 140 ft/min |
| Lowering speeds RL OPTIONAL 9.4″ MAST | 160 †† ft/min |
| Brakes Service/parking (method of control) | Foot / auto |
Dimensions 5 specs
| Load center Distance | 24 in (610 mm) |
|---|---|
| Tire type Load/caster/drive | Poly/Poly/Poly |
| Forks, standard (length x width x thickness) | 1.80 x 3.9 x 42 in |
| Size – front load wheels, standard | 5 x 3.9 |
| Size, standard – drive tire/dual casters | 13.5 x 5.5 / 7.9 x 2.2 |
Weight 1 spec
| Axle loading with assembly retracted (front/rear) | 8546/4228 lb |
|---|
Power / Engine 8 specs
| Power type Electric, diesel, LPG | Electric – 36 V |
|---|---|
| Truck weight, without battery (approximate) | 5930 lb |
| Battery compartment size 16.25″ – (LxWxH) | 39.0 x 16.25 x 31.5 in |
| Wheelbase 16.25″ battery compartment 9.4″ MAST | 58.5 in |
| Wheelbase 18.25″ battery compartment 9.4″ MAST | 60.5 in |
| Wheelbase 21.25″ battery compartment 9.4″ MAST | 63.5 in |
| Traction motor control method | Transistor |
| Hoist motor control method | Transistor |
