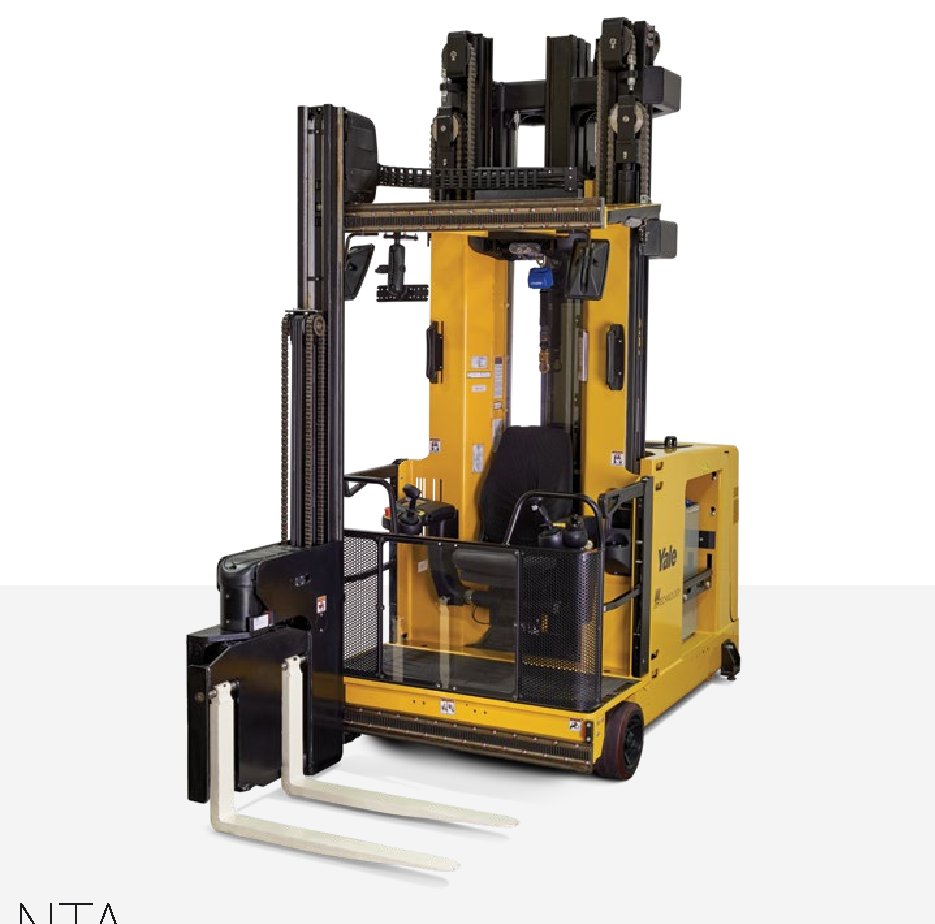

Yale NTA030SB Specs

Quick-reference specifications for the Yale NTA030SB forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Rated capacity: 3000 lb1360 kg
Maximum gradeability with RL: 6 %

Performance 14 specs

Rated capacity	3000 lb (1360 kg)
Load center	24 in (610 mm)
Mast type	Triform
Reach carriage stroke (pantograph)	4/5/6/8/10 in (102/127/152/203/254 mm)
Travel speed RL/NL	6.5/6.5 mph
Lift speed, main mast RL/NL	65/83 fpm
Lift speed, auxiliary mast RL/NL	69/77 fpm
Lower speed, main mast RL/NL	98/98 fpm
Lower speed, auxiliary mast RL/NL	79/77 fpm
Attachment rotate speed (full 180 deg. rotation) max speed	6 sec
Maximum gradeability with RL	6 %
Service brakes	Electric/mechanical
Brake method of operation	Plugging
Number of wheels: front/rear (x=drive) Load/drive	2/1x

Dimensions 14 specs

Tire type: cushion, pneumatic Load/drive	Cushion
Traverse frame widths	47.2/55.1/61/66.9 in (1200/1400/1550/1700 mm)
Pivot boom length	26.4 in (670 mm)
Pivot boom thickness	8.3 in (210 mm)
Fork carriage width	28.3 in (720 mm)
Fork spread adjustment (outside-outside dimension) min/max	20/28.3 in (508/720 mm)
Cab width	47.2/55.1/61/66.9 in (1200/1400/1550/1700 mm)
Cab depth (front of cab to operator seat back)	34.2 in (870 mm)
Fork thickness x width x length std. forks	1.75 x 4 x 42 in (45 x 100 x 1066 mm)
Fork type	Pin
Frame width	48 in (1220 mm)
Width across guide rollers	50.2/58/64/69.9 in (1275/1475/1625/1775 mm)
Top of fork – mast lowered	3.1 in (80 mm)
Tire type Load/drive	Polyurethane

Power / Engine 7 specs

Drive power type: electric	Electric – 48 volt
Battery connector style on truck	Blue SB 350
Recommended battery lead length and connector position	30 in position B
Drive motor rating 60 min. rating	7.5 kw
Hoist motor rating (25% duty cycle rating)	2 x 12 kw
Drive motor control	AC – MOSFET
Hoist motor control	AC – MOSFET
