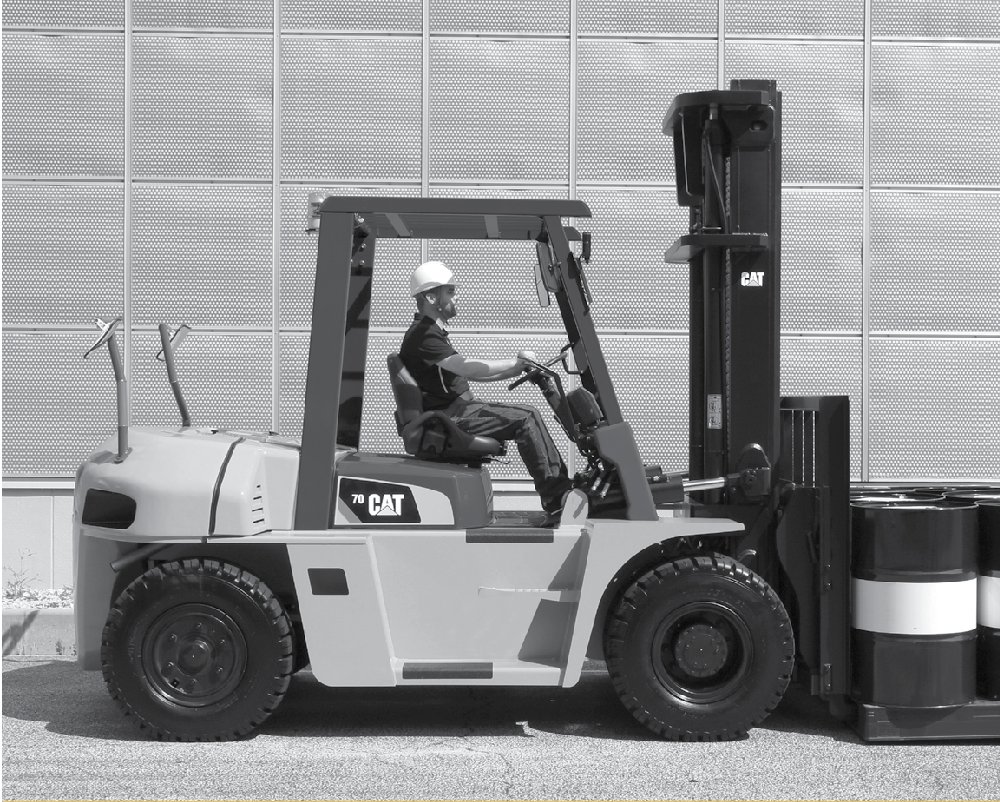

Caterpillar DP100 Specs

Quick-reference specifications for the Caterpillar DP100 forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity	10000 kg
Load centre distance	600 mm
Mast tilt, forwards/backwards	6/12 °
Minimum distance between centres of rotation	1320 mm
Travel speed, with/without load	24.0 / 30.0 km/h
Lifting speed, with/without load	0.39 / 0.41 m/s
Lowering speed, with/without load	0.47 / 0.34 m/s
Rated drawbar pull, with/without load (@1.6 km/h)	57300 / 31400 N
Gradeability, with/without load (@1.6 km/h)	22 /20 %
Rated speed to DIN 70 020	2100 rpm
Noise level, value at operator’s ear (EN 12053)	85 dB (A)

Wheelbase	2800 mm
Tyre dimensions, front	9.00X20-14PR
Tyre dimensions, rear	9.00X20-14PR
Track width (centre of tyres), front	1600 mm
Track width (centre of tyres), rear	1700 mm
Height with mast lowered (see tables)	2850 mm
Free lift (see tables)	205 mm
Lift height (see tables)	3000 mm
Overall height with mast raised	4330 mm
Height to top of overhead guard	2560 mm
Seat height	1415 mm
Tow coupling height	515 mm
Overall length	5475 mm
Length to fork face (includes fork thickness)	4255 mm
Overall width	2245 / – mm
Fork dimensions (thickness, width, length)	75 x 175 x 1220 mm
Fork carriage to DIN 15 173 A/B/no	No
Fork carriage width	2210 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	5810 mm
Working aisle width with 800 x1200 mm pallets, lengthwise	5610 mm
Turning circle radius	3900 mm

Fuel consumption according to VDI 60 cycle	8.4 / – l/h / kg/h
Max torque (S.A.E. gross)	417 Nm

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic/Mechanical
Maximum operating pressure for attachments	200 bar
