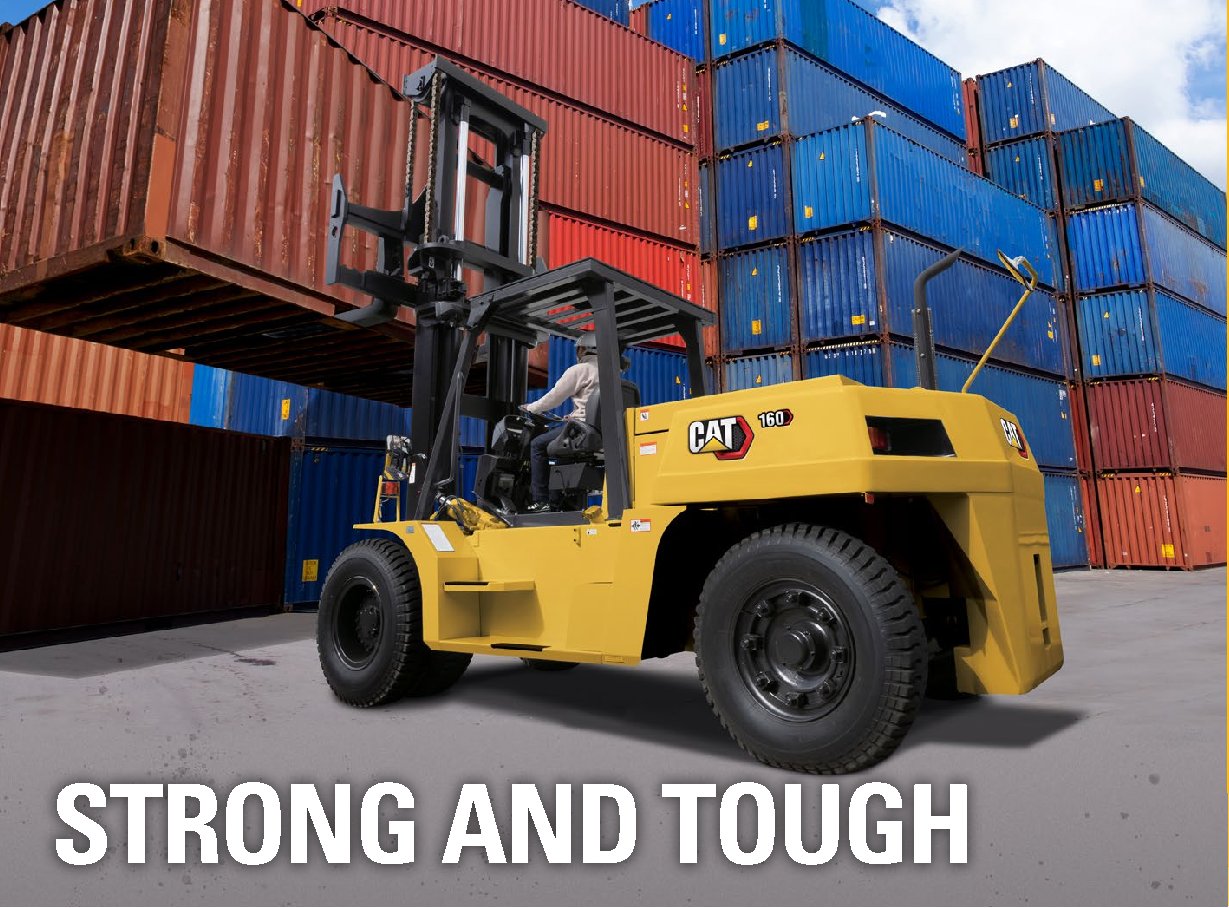

Caterpillar DP115 Specs

Quick-reference specifications for the Caterpillar DP115 forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Load capacity	11500 kg
Load centre distance	600 mm
Minimum distance between centres of rotation	1390 mm
Travel speed, with/without load	34/34 km/h
Lifting speed, with/without load	0.45 / 0.5 m/s
Lowering speed, with/without load	0.5 m/s
Maximum drawbar pull, with/without load (5 min short duty)	114000/35000 N
Gradeability, with/without load	38.5/22.2 %
Rated / nominal output to ISO 1585	114.0 kW
Rated speed to DIN 70 020	2000 rpm

Wheelbase	2800 mm
Tyre dimensions, front	10.00-20-16PR
Tyre dimensions, rear	10.00-20-16PR
Track width (centre of tyres), front	1655 mm
Track width (centre of tyres), rear	1810 mm
Height with mast lowered (see tables)	2915 mm
Free lift (see tables)	0 mm
Lift height (see tables)	3000 mm
Overall height with mast raised	4415 mm
Height to top of overhead guard	2755 mm
Seat height	1680 mm
Tow coupling height	530 mm
Overall length	5505 mm
Length to fork face (includes fork thickness)	4285 mm
Overall width	2280 / – mm
Fork dimensions (thickness, width, length)	1220x180x90 mm
Fork carriage to DIN 15 173 A/B/no	No
Fork carriage width	2204 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	5925 mm
Working aisle width with 800 x1200 mm pallets, crosswise	6125 mm
Working aisle width with 800 x1200 mm pallets, lengthwise	5725 mm
Turning circle radius	4000 mm

Max torque	537 Nm

Service brakes (mechanical/hydraulic/electric/pneumatic)	Mechanical/Hydraulic
Maximum operating pressure for attachments	206 bar
