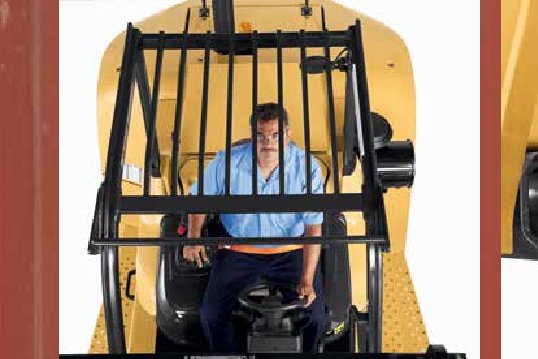

Caterpillar DP100N2 Specs

Quick-reference specifications for the Caterpillar DP100N2 forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Capacity at rated load center	22,000 lb (10,000 kg)
Capacity at load center – distance	24 in (600 mm)
Tilt – forward / backward	15° / 12°
Minimum outside turning radius	164 in (4,160 mm)
Travel speed – loaded / empty	17.7 / 20.2 mph (28.5 / 32.5 km/h)
Lift speed – loaded / empty	80.7 / 86.6 fpm (0.41 / 0.44 m/s)
Lowering speed – loaded / empty	90.6 / 94.5 fpm (0.46 / 0.48 m/s)
Gradeability – loaded at 1 mph (1.6 km)	41.5 %
Gradeability – maximum loaded	41.5 %
Axle load – with rated load front / rear	48,305 / 5,975 lb (21,930 / 2,710 kg)
Noise level – mean value at operator’s ear Leq	82.9 dB (A)

Tire type – cushion or pneumatic	pneumatic
Maximum fork height (top of fork) 1)	121 in (3,072 mm)
Free fork height 1)	2.8 in (72 mm)
Forks – thickness x length x width 1)	2.8 x 48.0 x 7.1 in (72 x 1,220 x 180 mm)
Fork spacing – out-to-out minimum / maximum	18.7 / 79.1 in (475 / 2,010 mm)
Length to fork face	177 in (4,505 mm)
Width – with dual drive tires	99 in (2,515 mm)
Height – with lowered mast 1)	121.5 in (3,087 mm)
Seat height to SIP	75.4 in (1,915 mm)
Height – to top of overhead guard	119 in (3,015 mm)
Height – with extended mast 1)	177 in (4,486 mm)
Tire size – front, standard duals	10-20-14PR in
Tire size – rear tires	10-20-14PR in
Wheelbase	110 in (2,800 mm)
Tread width – front, standard duals	74.8 in (1,900 mm)
Tread width – rear tires	77.4 in (1,965 mm)
Ground clearance – at lowest point at mast	10.2 in (260 mm)
Ground clearance – at center of wheelbase	12.2 in (310 mm)
Service brake	air over hydraulic power brakes
Parking brake	hand, mechanical

Axle load – without load front / rear	15,540 / 16,740 lb (7,050 / 7,590 kg)

Engine model	Perkins 1204F
Engine – continuous output S.A.E. gross	174 HP (129 kW)
Engine – maximum torque S.A.E. gross	553 lb-ft (750 N-m)
Cylinder / displacement	4 / 268.5 cu in (4 / 4.4 L)
Transmission – type	powershift
Battery	24 volts

Relief pressure for attachments	2,990 psi (206 bar)
