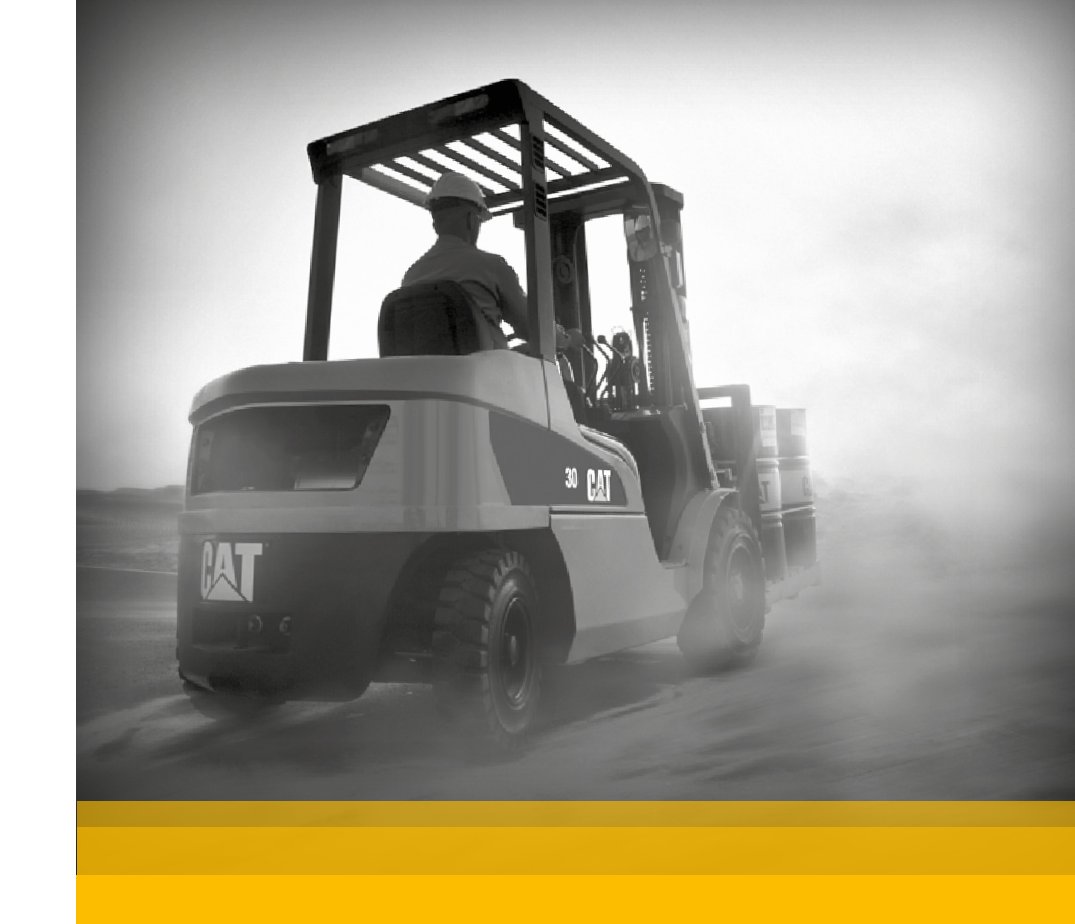

Caterpillar DP15NT Specs
Quick-reference specifications for the Caterpillar DP15NT forklift, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Load capacity – Q | 1500 kg |
|---|---|
| Load centre distance – c | 500 mm |
| Mast tilt, forwards/backwards – ∂/ß | 6 / 12 ° |
| Travel speed, with/without load | 19/19.5 km/h |
| Lifting speed, with/without load | 0.63 / 0.69 m/s |
| Lowering speed, with/without load | 0.52 / 0.50 m/s |
| Rated drawbar pull, with/without load – N | 11900/11500 N |
| Service brakes | Hydraulic |
| Rated speed to DIN 70 020 – rpm | 2500 rpm |
| Noise level, value at operator’s ear (EN 12053) – dB(A) | 80 dB (A) |
Dimensions 10 specs
| Wheelbase – y | 1400 mm |
|---|---|
| Tyre dimensions, front | 6.50-10-10PR |
| Tyre dimensions, rear | 5.00-8 -8PR |
| Track width (centre of tyres), front – b | 890 mm |
| Height with mast lowered – h | 1990 mm |
| Overall length – l | 3180 mm |
| Overall width – b1/b | 1065 / – mm |
| Fork dimensions (thickness, width, length) – s,e,l | 35x100x920 mm |
| Fork carriage to DIN 15 173 A/B/no | 2A |
| Turning circle radius – Wa | 1950 mm |
Power / Engine 1 spec
| Power source | Diesel |
|---|
Hydraulics / Fluids 2 specs
| Operating pressure for attachments – bar | 180 bar |
|---|---|
| Oil flow for attachments – l/min | 62 l/min |
