Forklift · Caterpillar

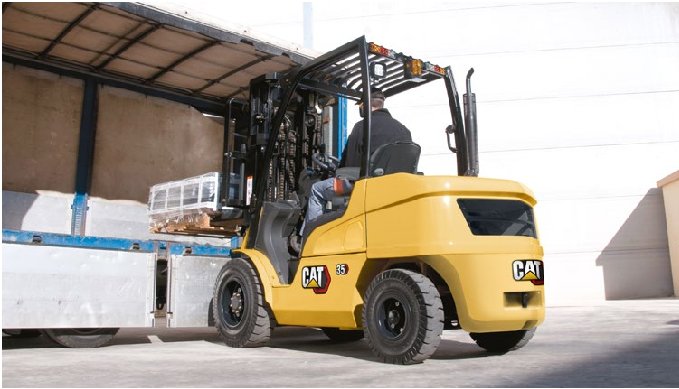

Caterpillar DP25 Specs
Quick-reference specifications for the Caterpillar DP25 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 118.11 in3,000 mm
- Operating Weight
- 9,237 lb4,190 kg
Performance 2 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 5,000 lb (2,268 kg) |
Dimensions 3 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Maximum Lift Height | 118.11 in (3,000 mm) |
| Fork Length | 47 in (1,194 mm) |
Weight 1 spec
| Operating Weight | 9,237 lb (4,190 kg) |
|---|
Power / Engine 1 spec
| Number of Cylinders | 4 |
|---|
Hydraulics / Fluids 2 specs
| Tire Type (Front) | Rubber 7.00-12 |
|---|---|
| Tire Type (Rear) | Rubber 6.00-9 |
