Forklift · Caterpillar

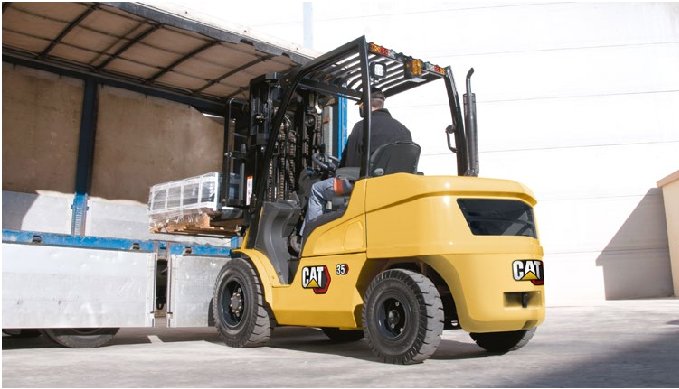

Caterpillar DP25N Specs
Quick-reference specifications for the Caterpillar DP25N forklift, from the manufacturer’s spec sheet and published specifications.
Performance 11 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Lifting Capacity | 5,000 lb (2,500 kg) |
| Load Center | 24 in (500 mm) |
| Travel Speed with Load | 19 km/h |
| Travel Speed without Load | 19.5 km/h |
| Hoisting Speed with Load | 0.64 m/s |
| Hoisting Speed without Load | 0.67 m/s |
| Lowering Speed with Load | 0.5 m/s |
| Maximum Climbing Ability | 51% |
| Tilt Forward | 6.0 degrees |
| Tilt Backward | 10.0 degrees |
Dimensions 9 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Length to Fork Face | 100 in (2,550 mm) |
| Width with Standard Tires | 45.3 in (1,150 mm) |
| Width with Dual Drive Tires | 64.6 in (1,640 mm) |
| Overhead Guard Height | 82.9 in (2,105 mm) |
| Construction Height (Mast Lowered) | 78.7 in (1,995 mm) |
| Minimum Turning Radius | 87.8 in (2,230 mm) |
| Wheelbase | 63.0 in (1,600 mm) |
| Fork Length | 1,070 mm |
Weight 1 spec
| Weight with Standard Mast, No Attachment | 8,210 lb (3,720 kg) |
|---|
Power / Engine 4 specs
| Engine Type | 4EG Diesel |
|---|---|
| Engine Displacement | Alternative: S4S Diesel |
| Engine Power (S4S) | 44 kW |
| Number of Cylinders | 4 |
