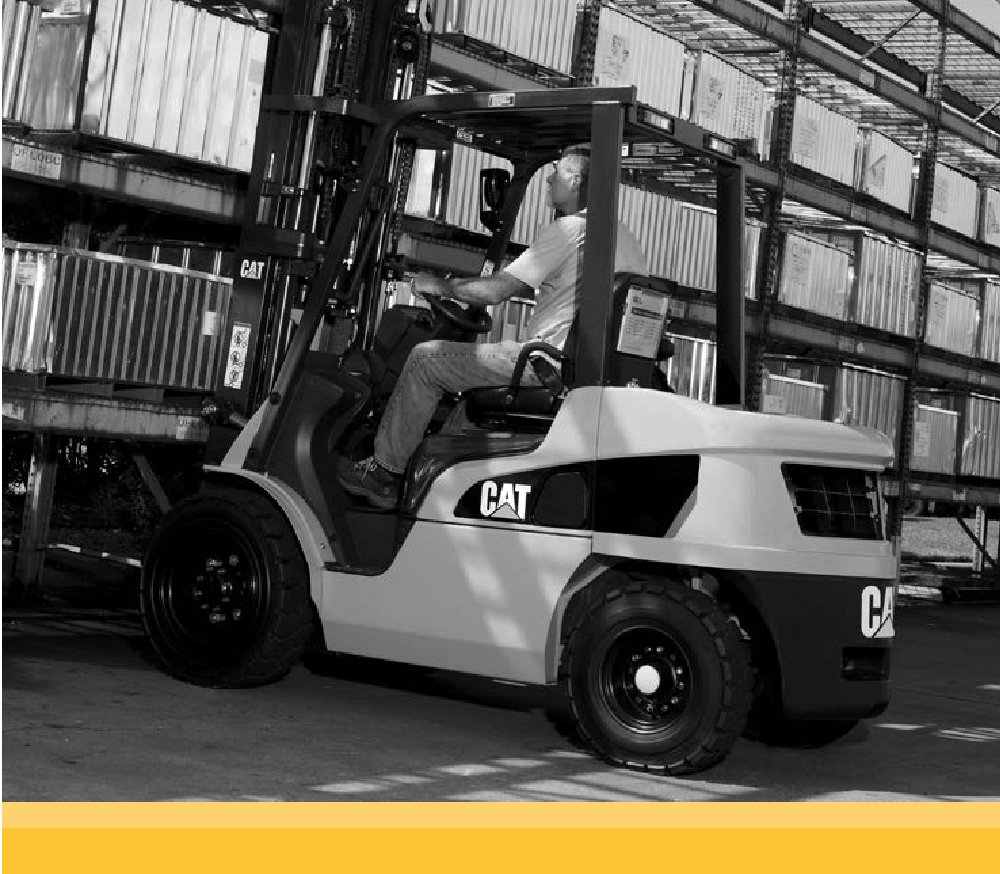

Caterpillar DP25NM Specs

Quick-reference specifications for the Caterpillar DP25NM forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Performance 6 specs

Load capacity – Q	2500 kg
Load centre distance – c	500 mm
Mast tilt, forwards/backwards – α/β	6 / 10 °
Travel speed, with/without load	16.5/17.5 km/h
Lifting speed, with/without load	0.61 / 0.64 m/s
Lowering speed, with/without load	0.50 / 0.50 m/s

Dimensions 10 specs

Wheelbase – y	1600 mm
Tyre dimensions, front	7.00-12-12PR
Tyre dimensions, rear	6.00-9 -10PR
Track width (centre of tyres), front – b	960 mm
Height with mast lowered (see tables) – h	2150 mm
Overall length – l	3620 mm
Overall width – b1/b	1160 / 1640 mm
Fork dimensions (thickness, width, length) – s / e / l	40 x 100 x 1070 mm
Fork carriage to DIN 15 173 A/B/no	2A
Turning circle radius – Wa	2230 mm

Power / Engine 1 spec

Power source	Diesel

Hydraulics / Fluids 1 spec

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
