Forklift · Caterpillar

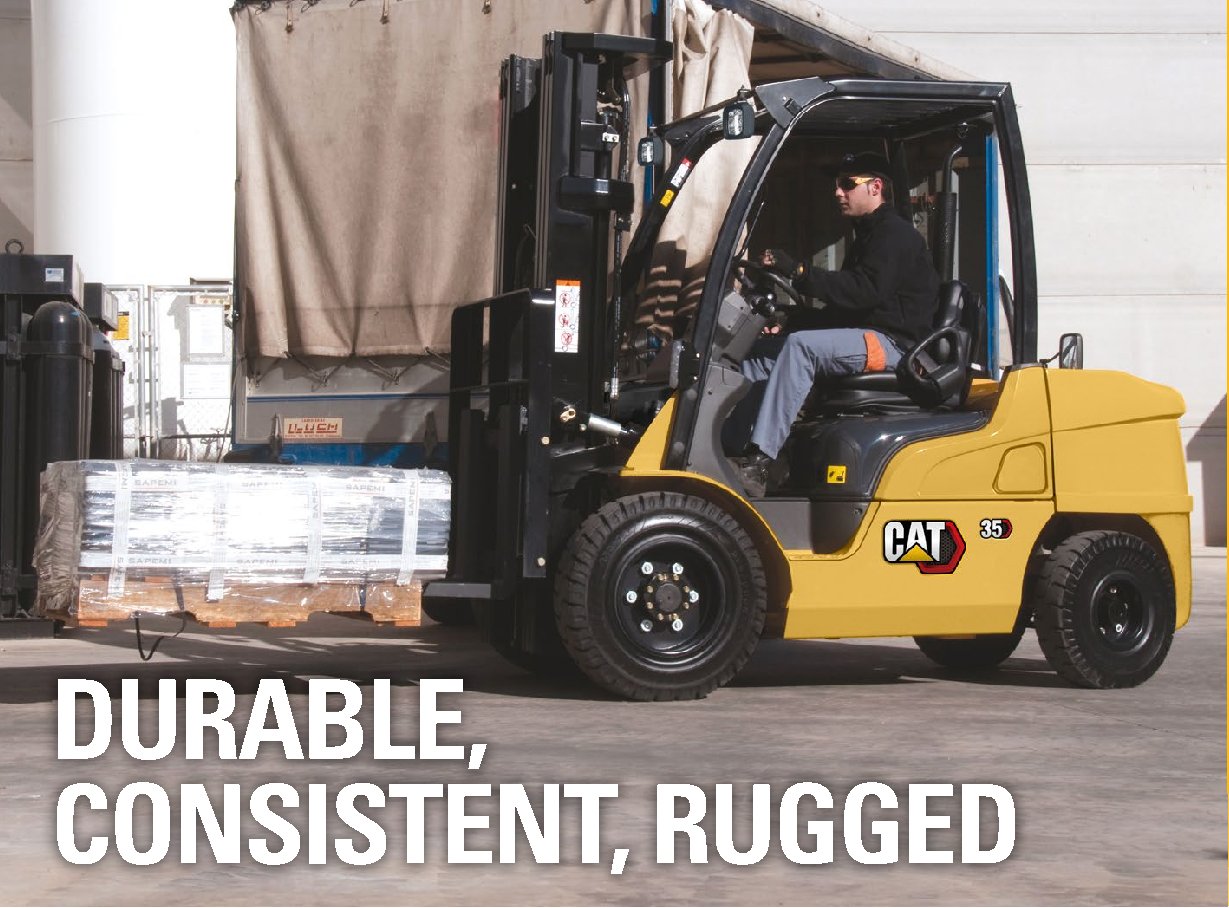

Caterpillar DP30 Specs
Quick-reference specifications for the Caterpillar DP30 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight (Cushion Tire variant)
- 10,449 lb4.74 t
Performance 3 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 6,000 lb (3,000 kg) |
| Load Center | 19.7 in (500 mm) |
Dimensions 4 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Length (Cushion Tire variant) | 9 ft 2 in (2.79 m) |
| Width (Cushion Tire variant) | 4 ft 2 in (1.27 m) |
| Height (Cushion Tire variant) | 8 ft 3 in (2.51 m) |
Weight 1 spec
| Operating Weight (Cushion Tire variant) | 10,449 lb (4.74 t) |
|---|
Power / Engine 3 specs
| Engine Type | S4S |
|---|---|
| Power Output | 59 HP (44 kW) |
| Cylinders | 4 |
