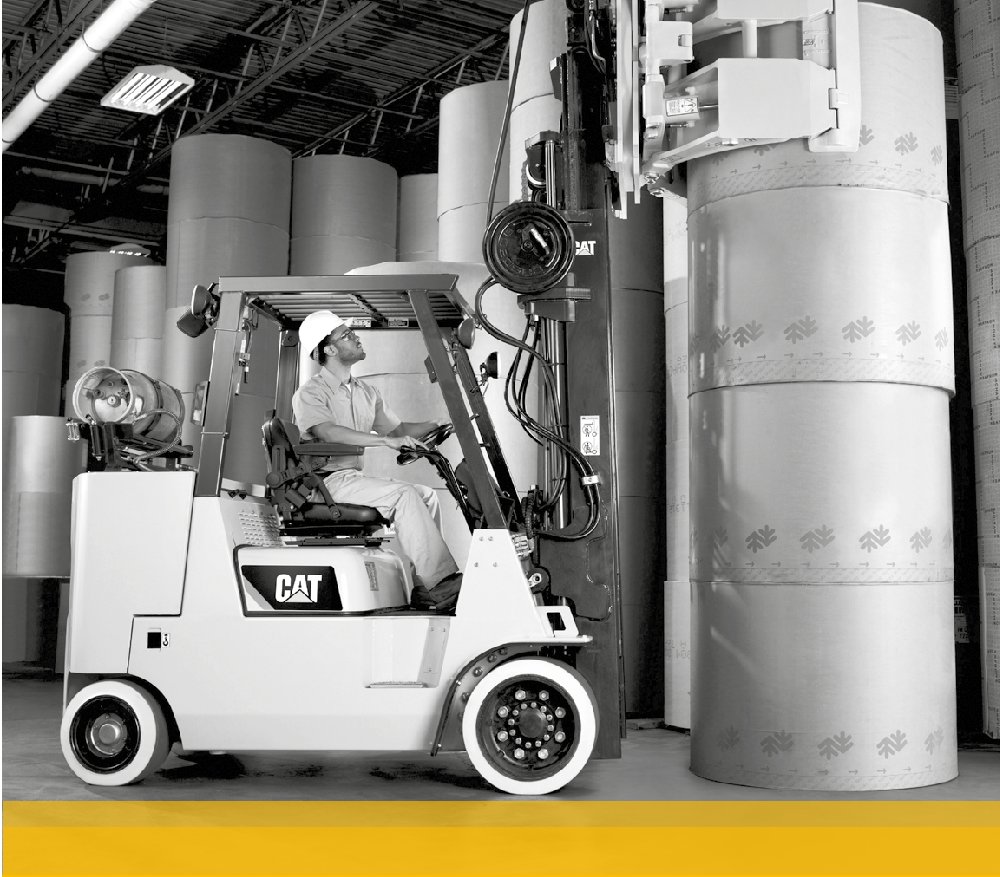

Caterpillar GC45K Specs

Quick-reference specifications for the Caterpillar GC45K forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, with/without load: 27/27 %

Performance 16 specs

Load capacity Q	4500 kg
Load centre distance c	600 mm
Tyres front/rear	V/V
Mast tilt, forwards/backwards α/β	5/10°
Travel speed, with/without load	18.5/19.5 km/h
Lifting speed, with/without load	0.39/0.42 m/s
Lowering speed, with/without load	0.44/0.41 m/s
Rated drawbar pull, with/without load	23780/- N
Maximum drawbar pull, with/without load	27460/- N
Gradeability, with/without load	27/27 %
Maximum gradeability, with/without load	30/30 %
Service brakes	Hydraulic
Rated speed to DIN 70 020	2600 rpm
Maximum operating pressure for attachments	200 bar
Oil flow for attachments	95 l/min
Noise level, value at operator’s ear (EN 12053)	83.5 dB (A)

Dimensions 19 specs

Wheelbase y	1575 mm
Tyre dimensions, front	22x9x16
Tyre dimensions, rear	18x7x12.1
Track width (centre of tyres), front b	940 mm
Track width (centre of tyres), rear b	980 mm
Height with mast lowered h	2120 mm
Free lift h	150 mm
Lift height h	2890 mm
Overall height with mast raised h	4090 mm
Height to top of overhead guard h	2205 mm
Seat height h	1200 mm
Overall length l	3840 mm
Length to fork face l	2620 mm
Overall width b1/b	1180/- mm
Fork dimensions (thickness, width, length) s, e, l	50x150x1220 mm
Fork carriage to DIN 15 173	3A
Fork carriage width b	1125 mm
Ground clearance at centre of wheelbase, with load m	150 mm
Turning circle radius Wa	2340 mm

Weight 2 specs

Axle loading with maximum load, front/rear	9495/1475 kg
Axle loading without load, front/rear	1960/4510 kg

Power / Engine 3 specs

Power source	LPG
Truck weight, without load / including battery	6470 kg
Max torque	285 Nm
