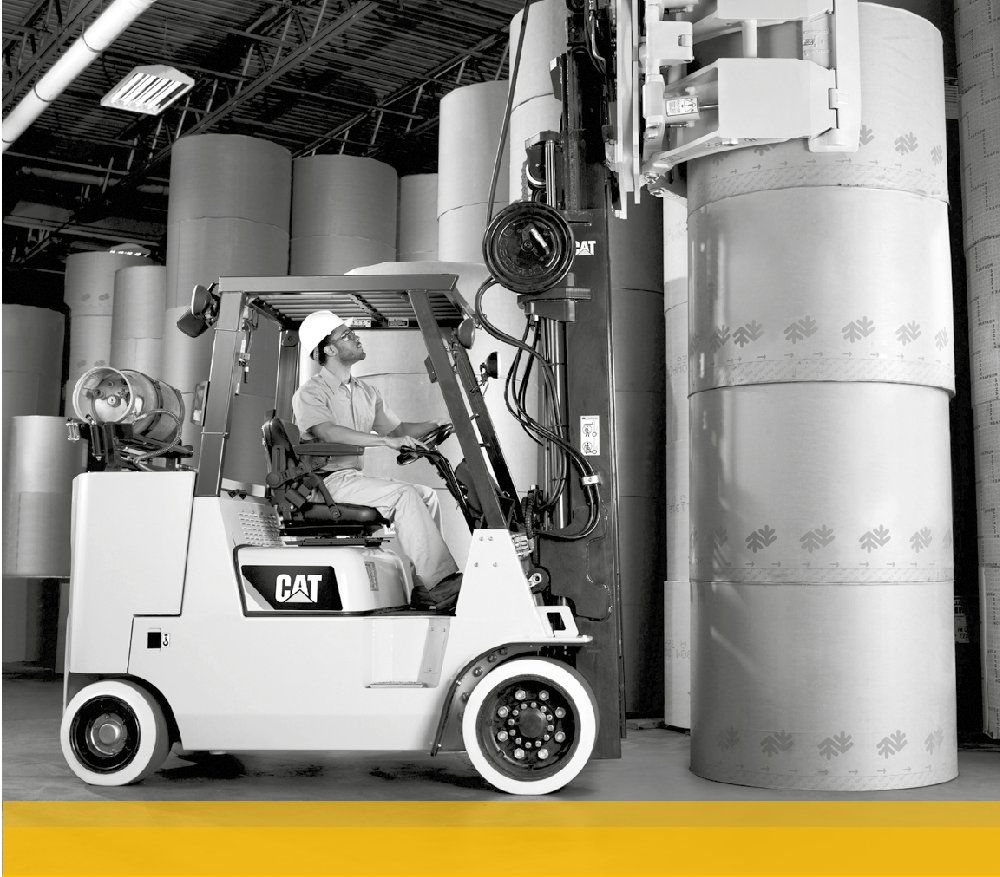

Caterpillar GC70K Specs
Quick-reference specifications for the Caterpillar GC70K forklift, taken from the manufacturer’s spec sheet.
Performance 9 specs
| Load capacity – Q | 7000 kg |
|---|---|
| Load centre distance – c | 600 mm |
| Mast tilt, forwards/backwards – α/β | 6/9° |
| Travel speed, with/without load | 20.5/23.0 km/h |
| Lifting speed, with/without load | 0.36/0.39 m/s |
| Lowering speed, with/without load | 0.54/0.39 m/s |
| Rated drawbar pull, with/without load (@1.6 km/h) – N | 29665/- N |
| Rated speed to DIN 70 020 – rpm | 2600 rpm |
| Noise level, value at operator’s ear (EN 12053) – dB(A) | 83.5 dB (A) |
Dimensions 9 specs
| Wheelbase – y | 1830 mm |
|---|---|
| Tyre dimensions, front | 28x12x22 |
| Tyre dimensions, rear | 22x8x16 |
| Track width (centre of tyres), front – b | 1130 mm |
| Height with mast lowered – h | 2150 mm |
| Overall length – l | 4170 mm |
| Fork dimensions (thickness, width, length) – s, e, l | 65x150x1220 mm |
| Fork carriage to DIN 15 173 A/B/no | 4A |
| Turning circle radius – Wa | 2570 mm |
Power / Engine 2 specs
| Power source | LPG |
|---|---|
| Max torque – Nm | 285 Nm |
Hydraulics / Fluids 3 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Maximum operating pressure for attachments – bar | 200 bar |
| Oil flow for attachments – l/min | 115 l/min |
