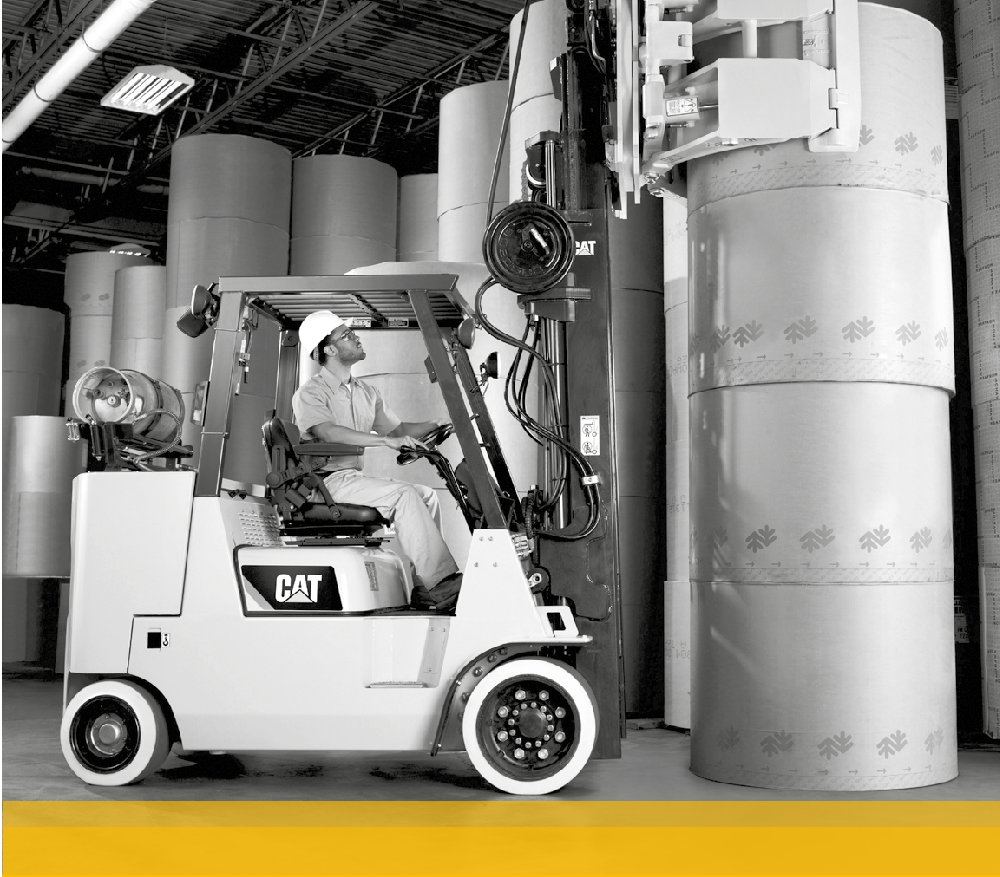

Caterpillar GC70KS Specs

Quick-reference specifications for the Caterpillar GC70KS forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity	7000 kg
Load centre distance	600 mm
Mast tilt, forwards/backwards	6/9°
Travel speed, with/without load	20.5/23.0 km/h
Lifting speed, with/without load	0.36/0.39 m/s
Lowering speed, with/without load	0.54/0.39 m/s
Rated drawbar pull, with/without load (@1.6 km/h)	29665/- N
Maximum drawbar pull, with/without load (@1.6 km/h)	36530/- N
Gradeability, with/without load (@1.6 km/h)	21.5 %
Maximum gradeability, with/without load	27 %
Rated speed to DIN 70 020	2600 rpm

Wheelbase	1830 mm
Tyre dimensions, front	28x12x22
Tyre dimensions, rear	22x8x16
Track width (centre of tyres), front	1130 mm
Track width (centre of tyres), rear	1160 mm
Height with mast lowered	2150 mm
Free lift	165 mm
Lift height	2370 mm
Overall height with mast raised	3590 mm
Height to top of overhead guard	2255 mm
Seat height	1285 mm
Overall length	4170 mm
Length to fork face (includes fork thickness)	2950 mm
Fork dimensions (thickness, width, length)	65x150x1220 mm
Fork carriage to DIN 15 173 A/B/no	4A
Fork carriage width	1295 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	4300 mm
Working aisle width with 800 x1200 mm pallets, lengthwise	4100 mm
Turning circle radius	2570 mm
Noise level, value at operator’s ear (EN 12053)	83.5 dB (A)

Power source	LPG
Max torque	285 Nm

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
Maximum operating pressure for attachments	200 bar
Oil flow for attachments	115 l/min
