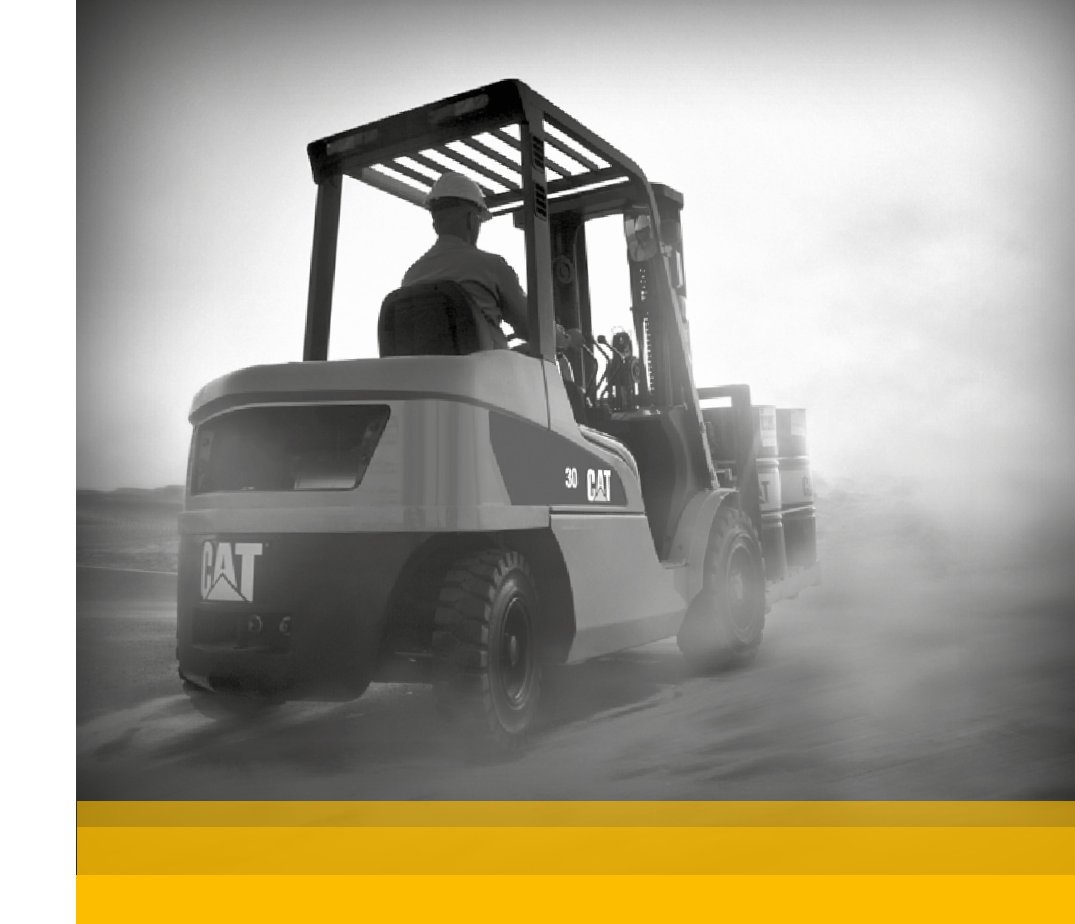

Caterpillar GP15NT Specs

Quick-reference specifications for the Caterpillar GP15NT forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Load capacity	1500 kg
Load centre distance	500 mm
Minimum distance between centers of rotation	555 mm
Travel speed, with/without load	19 / 19.5 km/h
Lifting speed, with/without load	0.49 / 0.56 m/s
Lowering speed, with/without load	0.52 / 0.50 m/s
Rated drawbar pull, with/without load	10400/10200 N
Gradeability, with/without load	24/44 %
Rated speed to DIN 70 020	2450 rpm
Noise level, value at operator’s ear (EN 12053)	79 dB (A)

Wheelbase	1400 mm
Tyre dimensions, front	6.50-10-10PR
Tyre dimensions, rear	5.00-8 -8PR
Track width (centre of tyres), front	890 mm
Track width (centre of tyres), rear	900 mm
Height with mast lowered	1990 mm
Free lift	115 mm
Lift height	3000 mm
Overall height with mast raised	4055 mm
Height to top of overhead guard	2065 mm
Seat height	929 mm
Tow coupling height	290 mm
Overall length	3180 mm
Length to fork face (includes fork thickness)	2260 mm
Overall width	1065 / – mm
Fork dimensions (thickness, width, length)	35x100x920 mm
Fork carriage to DIN 15 173 A/B/no	2A
Fork carriage width	920 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	3550 mm
Working aisle width with 800 x1200 mm pallets, crosswise	3350 mm
Turning circle radius	1950 mm

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
Operating pressure for attachments	180 bar
Oil flow for attachments	60 l/min
