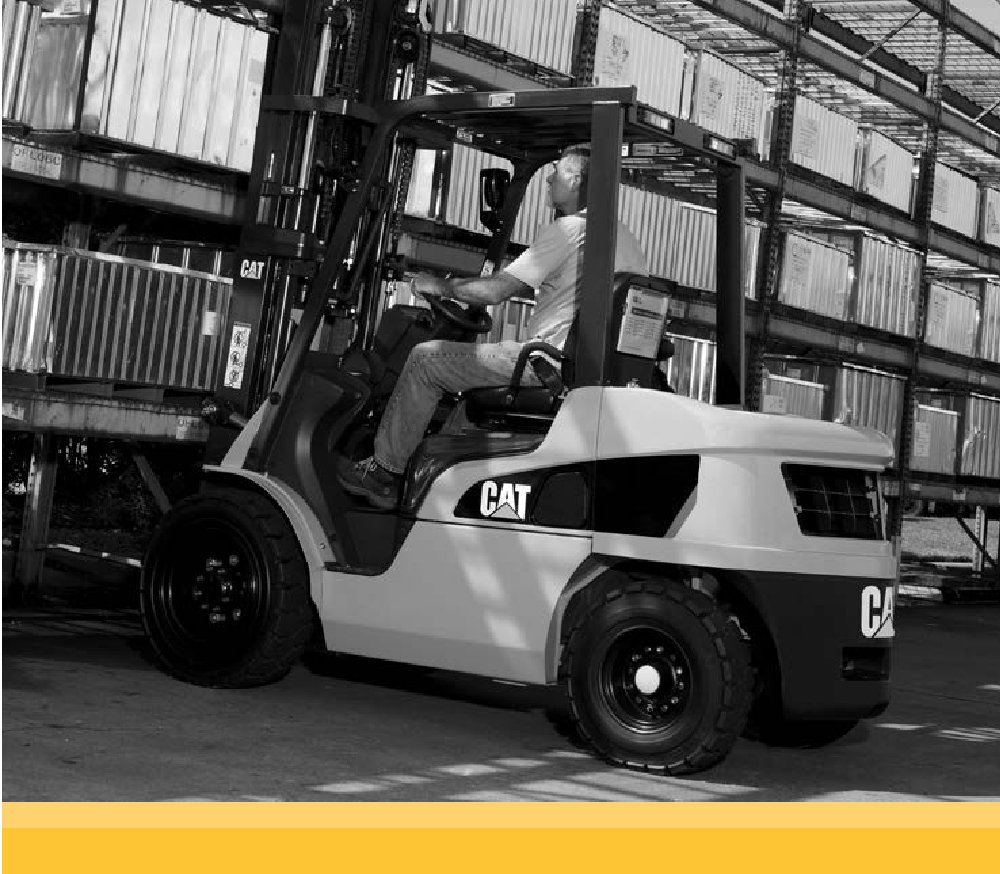

Caterpillar GP20N Specs
Quick-reference specifications for the Caterpillar GP20N forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load
- 38.1/18.5 %
Performance 11 specs
| Load capacity | 2000 kg |
|---|---|
| Load centre distance | 500 mm |
| Mast tilt, forwards/backwards | 6 / 10 ° |
| Minimum distance between centres of rotation | 715 mm |
| Travel speed, with/without load | 17/18.5 km/h |
| Lifting speed, with/without load | 0.57/0.58 m/s |
| Lowering speed, with/without load | 0.50/0.50 m/s |
| Rated drawbar pull, with/without load | 16481/- N |
| Gradeability, with/without load | 38.1/18.5 % |
| Rated speed to DIN 70 020 | 2700 rpm |
| Noise level, value at operator’s ear (EN 12053) | 76.5 dB (A) |
Dimensions 21 specs
| Wheelbase | 1600 mm |
|---|---|
| Tyre dimensions, front | 7.00-12-12PR |
| Tyre dimensions, rear | 6.00-9-8PR |
| Track width (centre of tyres), front | 960 mm |
| Track width (centre of tyres), rear | 980 mm |
| Height with mast lowered (see tables) | 2150 mm |
| Free lift (see tables) | 140 mm |
| Lift height (see tables) | 3340 mm |
| Overall height with mast raised | 4570 mm |
| Height to top of overhead guard | 2105 mm |
| Seat height | 1110 mm |
| Tow coupling height | 310 mm |
| Overall length | 3560 mm |
| Length to fork face (includes fork thickness) | 2490 mm |
| Overall width | 1160/1640 mm |
| Fork dimensions (thickness, width, length) | 40 x 100 x 1070 mm |
| Fork carriage to DIN 15 173 A/B/no | 2A |
| Fork carriage width | 1000 mm |
| Working aisle width with 1000 x1200 mm pallets, crosswise | 3855 mm |
| Working aisle width with 800 x1200 mm pallets, lengthwise | 4055 mm |
| Turning circle radius | 2200 mm |
Hydraulics / Fluids 3 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Maximum operating pressure for attachments | 180 bar |
| Oil flow for attachments | 68 l/min |
