Forklift · Caterpillar

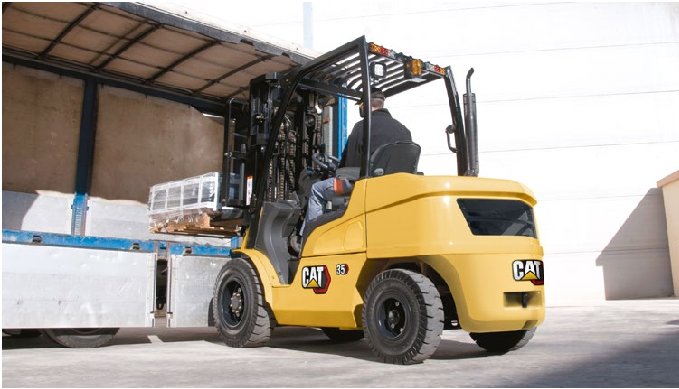

Caterpillar GP25N Specs
Quick-reference specifications for the Caterpillar GP25N forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 5,000 lb (2,270 kg) |
| Travel Speed – Loaded | 10.6 mph (17 km/h) |
| Travel Speed – Empty | 11.5 mph (18.5 km/h) |
| Lift Speed – Loaded | 124 fpm (0.59 m/s) |
| Lift Speed – Empty | 128 fpm (0.61 m/s) |
| Lowering Speed | 98.4 fpm (0.5 m/s) |
| Maximum Drawbar Pull | 5,670 lb |
Dimensions 12 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Load Center | 24 in (600 mm) |
| Overall Width (Standard Tires) | 45.3 in (1,150 mm) |
| Overall Width (Dual Drive Tires) | 64.6 in (1,640 mm) |
| Length to Fork Face | 100 in (2,540 mm) |
| Mast Lowered Height | 84.5 in (2,145 mm) |
| Overhead Guard Height | 82.9 in (2,105 mm) |
| Turning Radius (Outside) | 87.8 in (2,230 mm) |
| Wheelbase | 63 in (1,600 mm) |
| ForkSize(TxWxL) | 1.6 x 3.9 x 42 in (41 x 99 x 1,067 mm) |
| Fork Spread (Outside) | 8.7 in (221 mm) Min – 39.4 in (1,000 mm) Max |
| Tilt Range | 6° Forward / 10° Backward |
Weight 2 specs
| Total Weight (Without Attachment) | 7,990 lb (3,620 kg) |
|---|---|
| Weight Distribution – Full Load (Front/Rear) | 11,570 lb / 1,420 lb |
Power / Engine 6 specs
| Engine Model | GK25E |
|---|---|
| Rated Horsepower @ RPM | 61 hp @ 2,700 rpm |
| Rated Torque @ RPM | 129 lb-ft @ 1,600 rpm (175 Nm @ 1,600 rpm) |
| Number of Cylinders | 4 |
| Displacement | 152 cu in (2.49 L) |
| Fuel Tank Capacity | 2.5 L |
Hydraulics / Fluids 1 spec
| Battery Voltage | 12 V |
|---|
